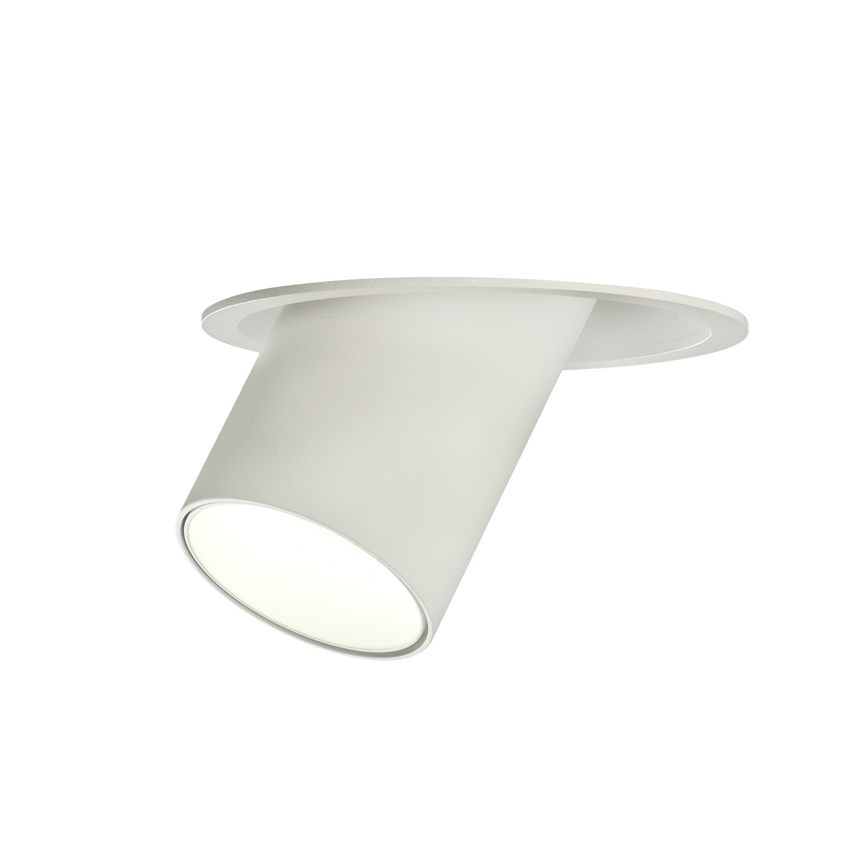

ACB Gina adjustable recessed spotlight GU10 textured white E3874080B

ACB Gina E3874080B is an adjustable recessed spotlight in textured white for indoor ceiling or wall installation. Its head allows the light to be directed toward a specific area; the GU10 bulb is chosen separately.

Requires a GU10 LED bulb of up to 8 W, not included. The catalog limits its diameter to 50 mm. Also check the length and fit of the bulb before choosing it.

Technical specifications

• Reference: E3874080B
• Socket and maximum power: 1 × GU10 LED, up to 8 W
• Bulb: Not included; maximum diameter of 50 mm
• Mounting: Recessed in ceiling or wall
• Cut-out: Ø 105 mm
• Outer ring diameter: 112 mm
• Head diameter: 57 mm

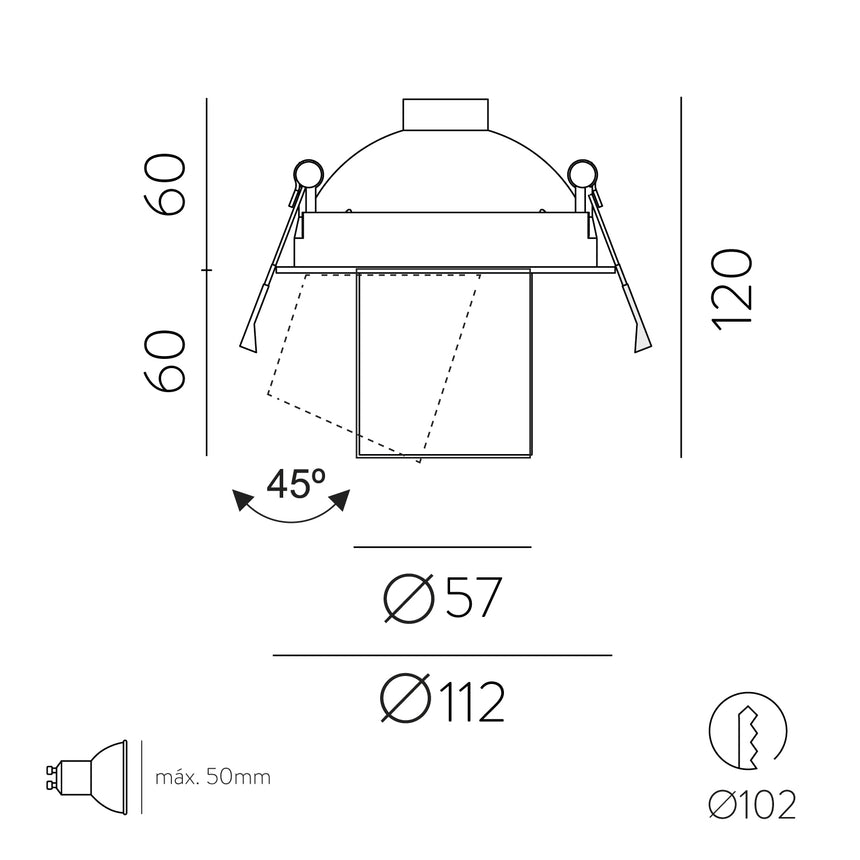

• Total body height: 120 mm; the technical drawing divides the height into two 60 mm sections
• Orientation: The specific drawing for this reference indicates a 45° tilt
• Material and finish: Aluminum and polycarbonate; textured white
• Protection: IP20, IK06, and class II; dry indoor use

Choose the light you need

The luminous flux, color temperature, color rendering, and beam angle depend on the installed bulb. The 45° in the drawing describes the tilt of the head; they are not the beam angle.

To dim the light, choose a dimmable bulb and a control that are compatible with each other. A smart bulb may require its own app, bridge, or control system; check the requirements for its specific reference.

Check the recess before installing

The Ø 105 mm cut-out matches the technical drawing, catalog, and manual. The total body height is not an indication of the minimum clearance depth: check the space required for connections and the movement of the head. Do not cover the luminaire with thermal insulation and follow the installation instructions.

Choose the finish

This product sheet corresponds to the textured white finish. View Gina black · E3874080N.

Documentation and projects

Official technical sheet for E3874080B · Measurement and orientation drawing · Installation manual · Gina Collection

For your home, we can help you choose the bulb and finish. For architecture and interior design projects, request a professional selection and quote.
