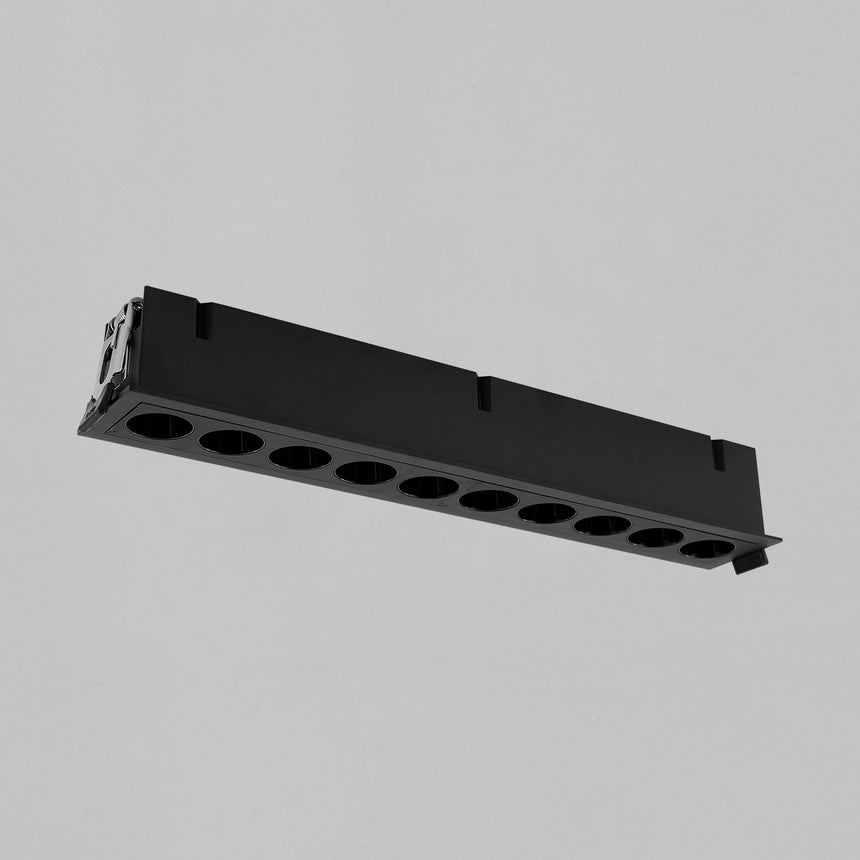

ACB Invisible linear recessed LED black textured 3000K 24W E3980100N

The ACB Invisible E3980100N is a textured black linear recessed light with an integrated 24 W LED and warm 3000 K light. Its 1,790 lm flux and 36° beam allow you to focus light on specific interior areas.

Includes LED and driver. This reference is ON/OFF and non-dimmable. No additional bulb is needed. Check the format, dimensions, and ceiling cutout before choosing it.

Technical data sheet

• Reference: E3980100N
• Light source: Integrated 24 W LED, included
• Luminous flux: 1,790 lm
• Light color: 3000 K, warm white
• Color rendering: CRI > 90

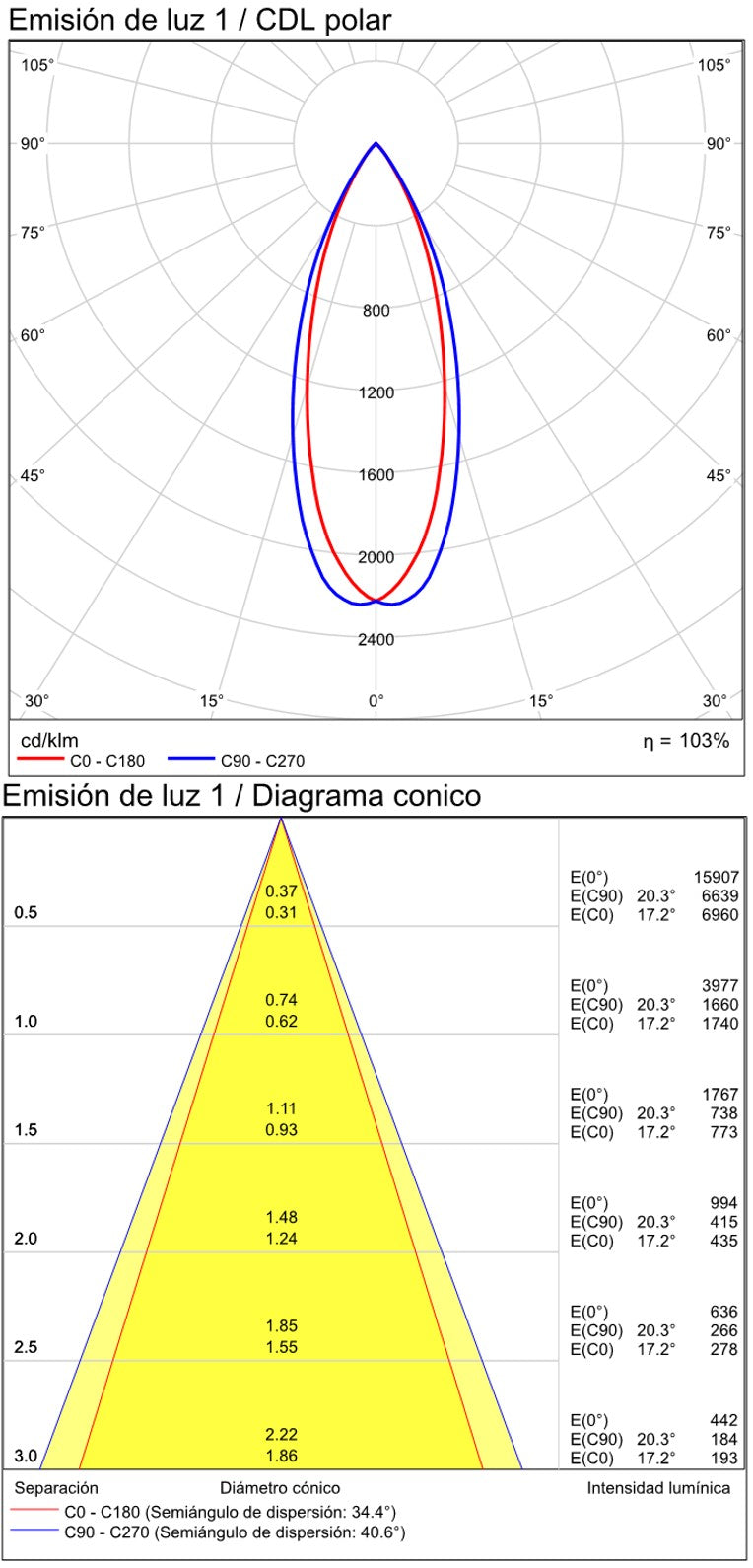

• Beam angle: 36°
• Dimming: Non-dimmable; ON/OFF switching
• Material and finish: Aluminum and polycarbonate; textured black

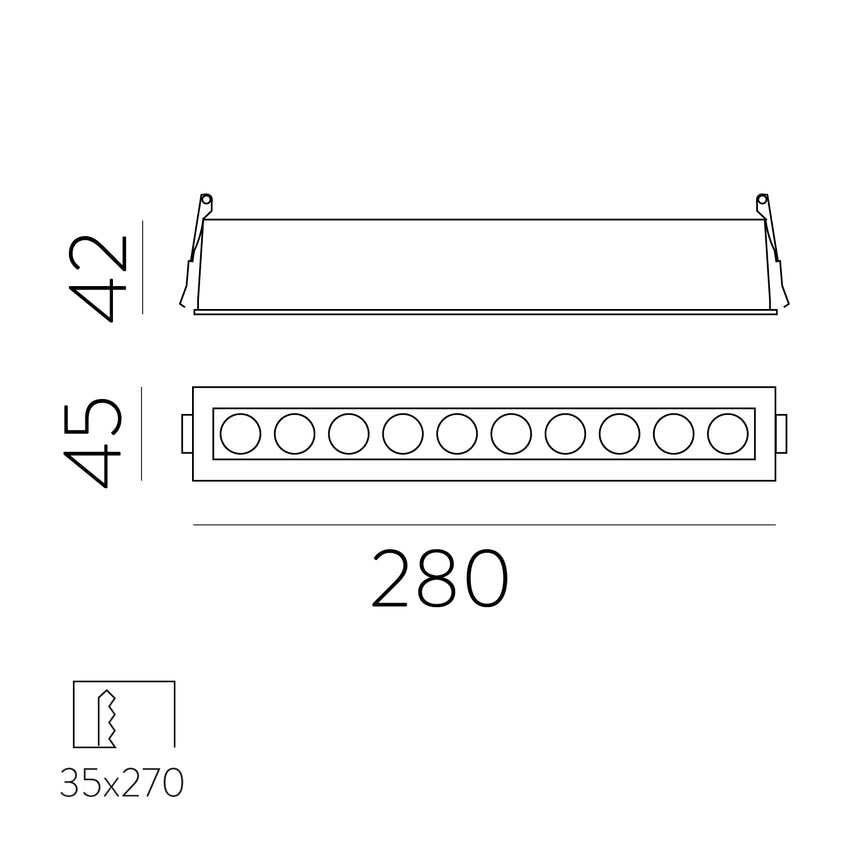

• Body dimensions: 280 × 45 × 42 mm
• Ceiling cutout: 270 × 35 mm
• Protection: IP20, IK06, and class II; dry interiors

Installation and available space

The indicated height corresponds to the luminaire body. Reserve additional space for the driver, connections, and the clearances specified in the manual: at least 50 mm of free space above and to the sides. Do not cover the unit with thermal insulation and do not place the driver on top of the luminaire.

If you need dimming

The catalog identifies E3980100NDT for TRIAC and E3980100NDP for DALI/PUSH as separate versions, with a minimum order of 10 units. Consult the terms and availability for your project before selecting them.

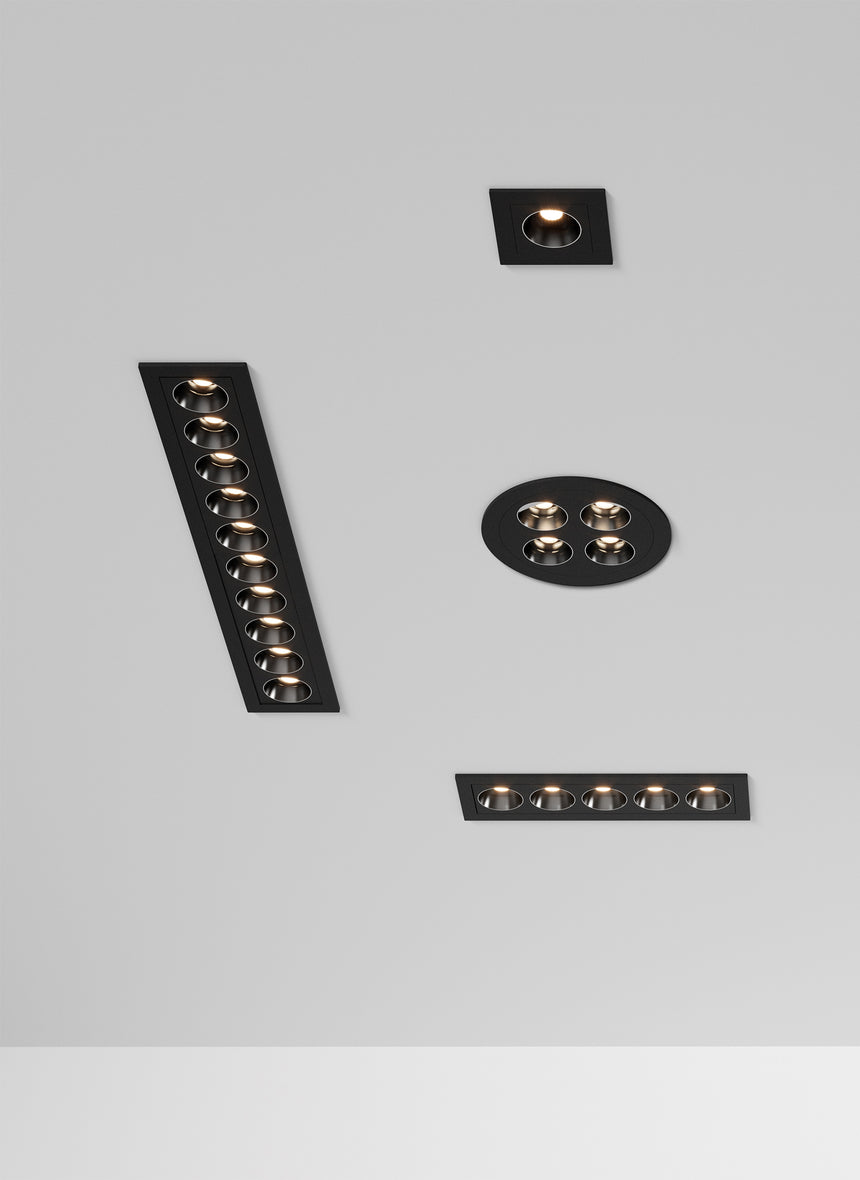

Compare sizes and finishes

These eight recessed lights feature warm 3000 K light and ON/OFF switching. Choose the format and available space first; then, the finish.

• 45 mm square · 3 W · 170 lm
  cutout 40 × 40 mm. White · E3980300B · Black · E3980300N
• Ø 85 mm round · 9 W · 680 lm
  cutout Ø 75 mm. White · E3980201B · Black · E3980201N
• 147 mm linear · 12 W · 850 lm
  cutout to be confirmed. White · E3980000B · Black · E3980000N
• 280 mm linear · 24 W · 1,790 lm
  cutout 270 × 35 mm. White · E3980100B · Black (this item)

The 12 W version has a discrepancy regarding the cutout size between documents. Check its data sheet before preparing the ceiling. The different formats are not interchangeable in the same opening.
