Trio Jura GU10 round recessed spotlight chrome pack of 3 IP20 Ø8.3cm 650100306

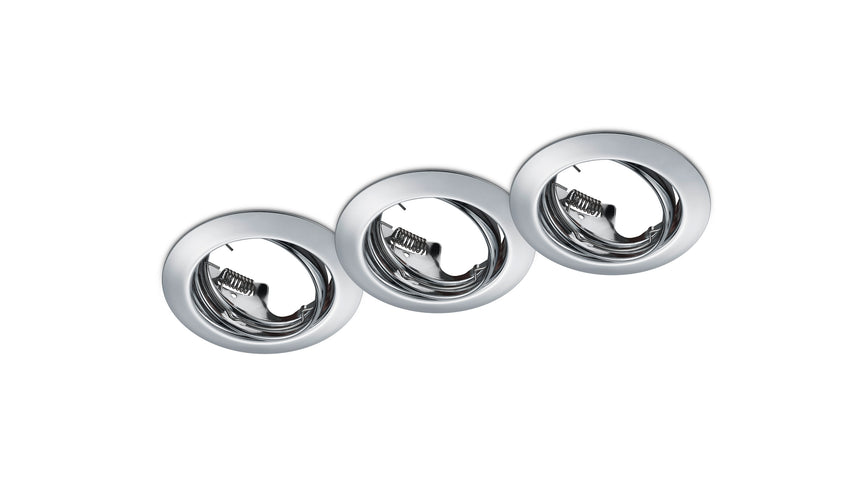

TRIO Jura 650100306 is a pack of 3 independent round recessed spotlights in a chrome finish. Each spotlight is adjustable and uses a GU10 bulb, which is purchased separately.

Check the hole before buying

The TRIO blueprint indicates a circular cutout of Ø68 mm, a minimum space of 90 mm above the false ceiling, and a panel thickness of 5 to 15 mm. The outer ring measures Ø83 mm. The height dimension shown on the drawing is 70 mm; this should not be confused with the minimum installation space.

Technical data sheet

• TRIO reference: 650100306
• Content: 3 independent recessed spotlights
• Required bulbs: 3 GU10, not included
• Maximum power: 15 W per bulb
• Orientation: Tilting
• Power supply: 230 V AC
• Protection: IP20, indoor use without protection against water
• Electrical class: II
• Material: Metal
• Finish: Chrome
• Outer diameter: 83 mm
• Ceiling cutout: Ø68 mm
• Minimum space above the false ceiling: 90 mm
• Panel thickness: 5–15 mm

Choosing the bulb

Choose a GU10 for 230 V of up to 15 W and check that its size allows it to be placed and adjusted within the fitting. The socket and power rating are not enough to ensure that any model will fit. The color temperature, lumens, and beam angle depend on the chosen bulb; they are not fixed by this ring.

To dim the intensity, you need a dimmable bulb and a dimmer switch that are compatible with each other. The recessed spotlight does not include a dimming system.

Other finishes in a pack of 3

• Jura round · matte nickel · pack of 3 · 650100307
• Jura round · matte white · pack of 3 · 650100331

Same finish per unit · 650100106. Each reference has its own content and price.

Blueprint and installation

Official blueprint for Jura round 6501001XX and 6501003XX

Consult the document supplied with the reference and perform the installation on a suitable ceiling. Help choosing bulbs and checking the installation · Quote for professionals.
