Mantra Magneto 48V 16W 3000K black dimmable angular luminaire 8339
Características destacadas
- LED
- Dimmable
Descripción

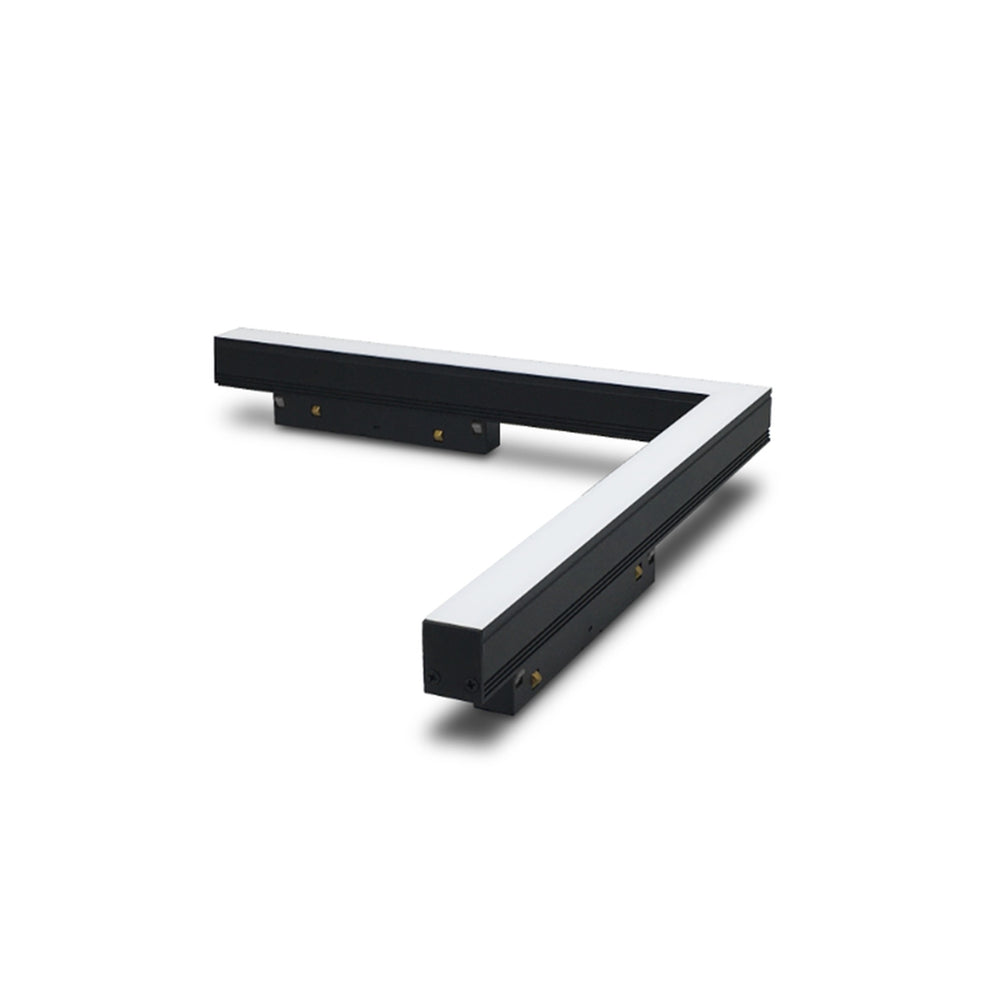

8339 angular luminaire for Mantra Magneto 48 V magnetic track. Integrated 16 W, 1280 lm, and 3000 K LED, with a black finish.
Technical data sheet
| Reference | 8339 |
|---|---|
| Type | Angular luminaire |
| LED power | 16 W |
| Luminous flux | 1280 lm |
| Color temperature | 3000 K |
| Color rendering | CRI ≥90 |
| Beam angle | 120° |
| Control | Phase-cut dimmable (TRIAC), with compatible power supply |
| Voltage | 48 V DC |
| Protection | IP20, indoor |
| Material | Aluminum |
| Finish | Black |

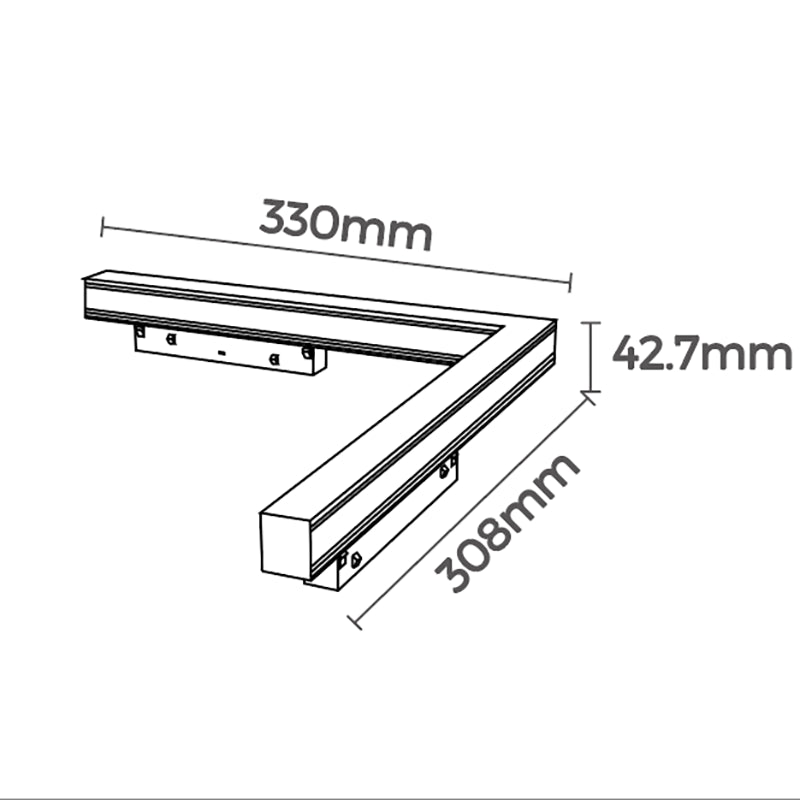

| Dimensions | Angular luminaire: 33 × 30.8 cm; profile height: 4.7 cm. |
What you need for installation
Requires track and power supply compatible with Mantra Magneto 48 V. Does not connect directly to the 230 V mains or a three-phase track. To dim the intensity, the power and control assembly must be compatible with this phase-cut dimmable reference.
Other versions of this family
View 2 m black surface-mounted Magneto track. The power supply and connections are chosen according to the project; this reference does not constitute a complete kit.
Specifications
Specifications
-
Colours / finishesBlack
-
MaterialsAluminum
-
Recommended roomsBathroom, Kitchen, Hallway / Entrance Hall, Living Room / Dining Room
-
StyleMinimalist
-
Height (cm)
-
Width (cm)
-
Depth (cm)
-
Collection
-
Wattage (W)16W
-
Power sourceIntegrated LED
-
Lumens1280
-
Colour temperature3000K
-
Beam angle120°
-
IP rating
