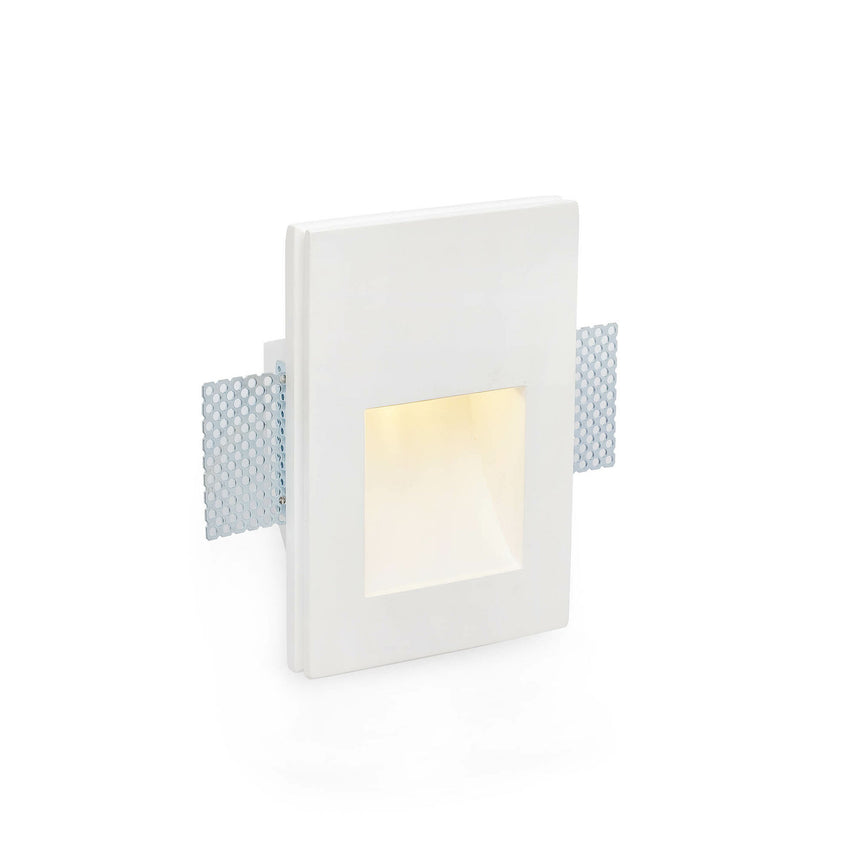

Faro Plas SQ LED white 3000K wall recessed light 63283

Faro Plas SQ 63283 is a white plaster wall recessed light for indoor lighting, with a square opening. It includes a 1 W LED light source and 3000 K warm light.

To complete the installation: you need a 350 mA constant current driver, not included. It does not connect directly to the 230 V mains. The On/Off driver recommended by Faro for one unit is reference 98310103.

Data sheet

• Faro reference: 63283
• Mounting: Wall
• Light source: 1 W integrated LED, included
• Luminaire luminous flux: 65 lm according to the current Faro data sheet
• Color temperature: 3000 K
• Color rendering: CRI >80
• Protection: IP20, indoor use
• Body material: White plaster

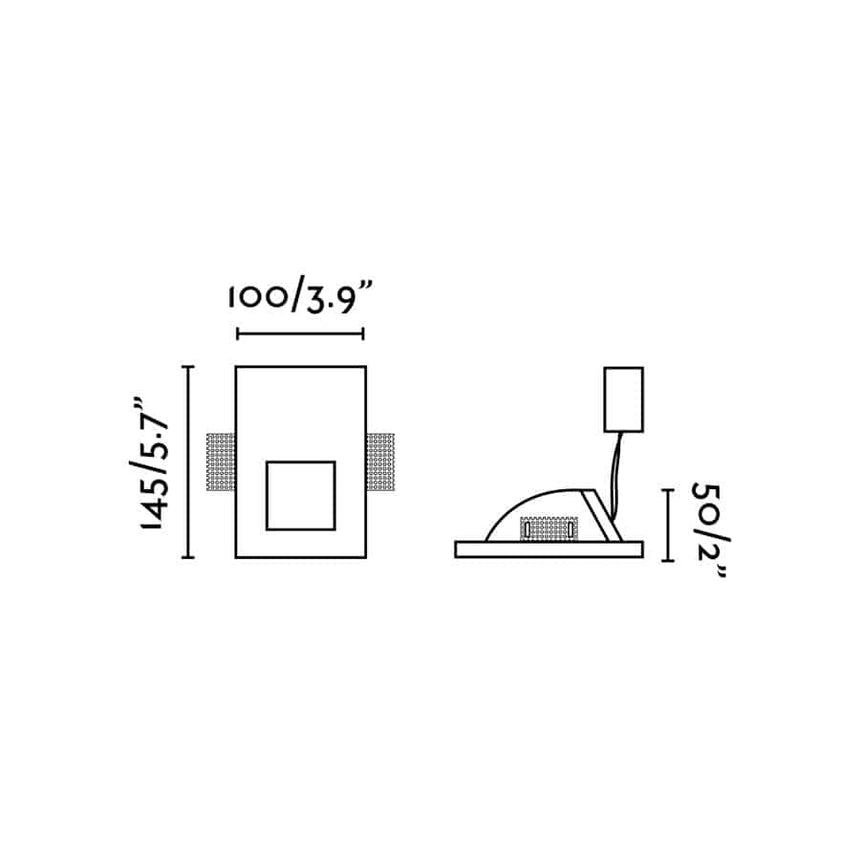

• Recessed cutout: 155 × 110 mm
• Electrical class: III
• Driver: Not included; 350 mA constant current

Driver selection

For switching a single unit on and off, Faro specifies the 98310103 driver. If you require DALI, TRIAC, or Casambi, the driver reference and the number of supported luminaires will change: request a selection for your installation. Choosing a power source based solely on its wattage is not enough.

Other shapes in the Plas family

• Plas Oval · 63 lm · driver not included · 63281
• Plas Linear · 22 lm · driver not included · 63282
• Plas RCT · 153 lm · driver included · 63490

Official Faro data sheet · Installation instructions · Official IES/LDT photometry (ZIP)

Request advice and a quote for your project by indicating the references, quantities, and the desired control system.
