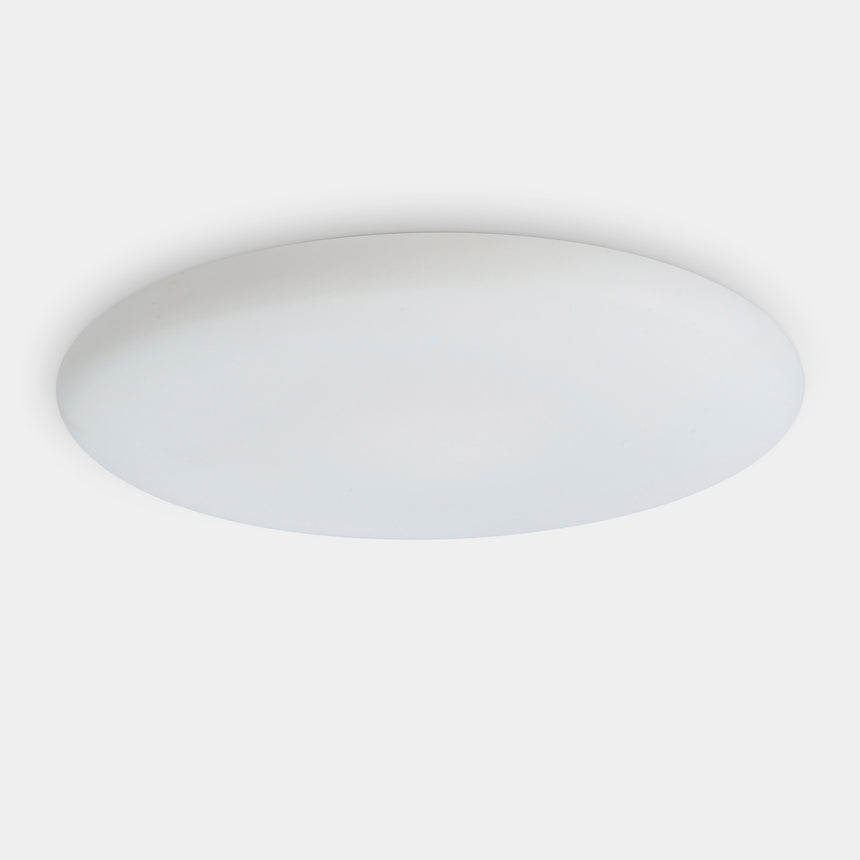

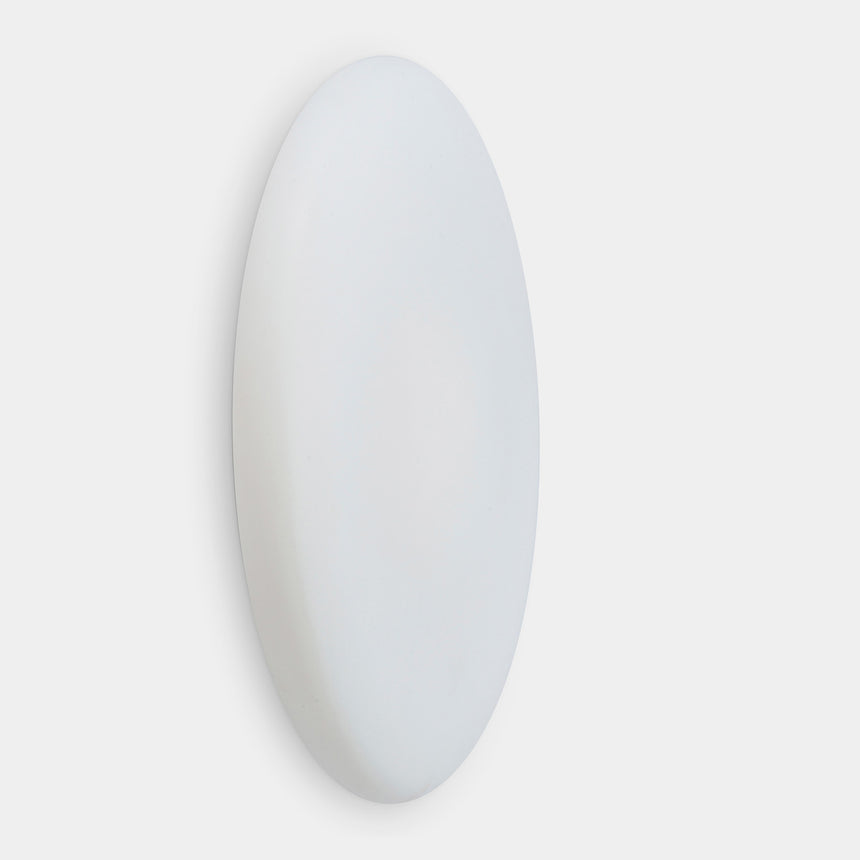

LedsC4 Mega large outdoor LED ceiling light CCT DALI dimmable IP65 Ø120cm 15-E111-M1-EH

LedsC4 Mega Outdoor LED Flush Mount

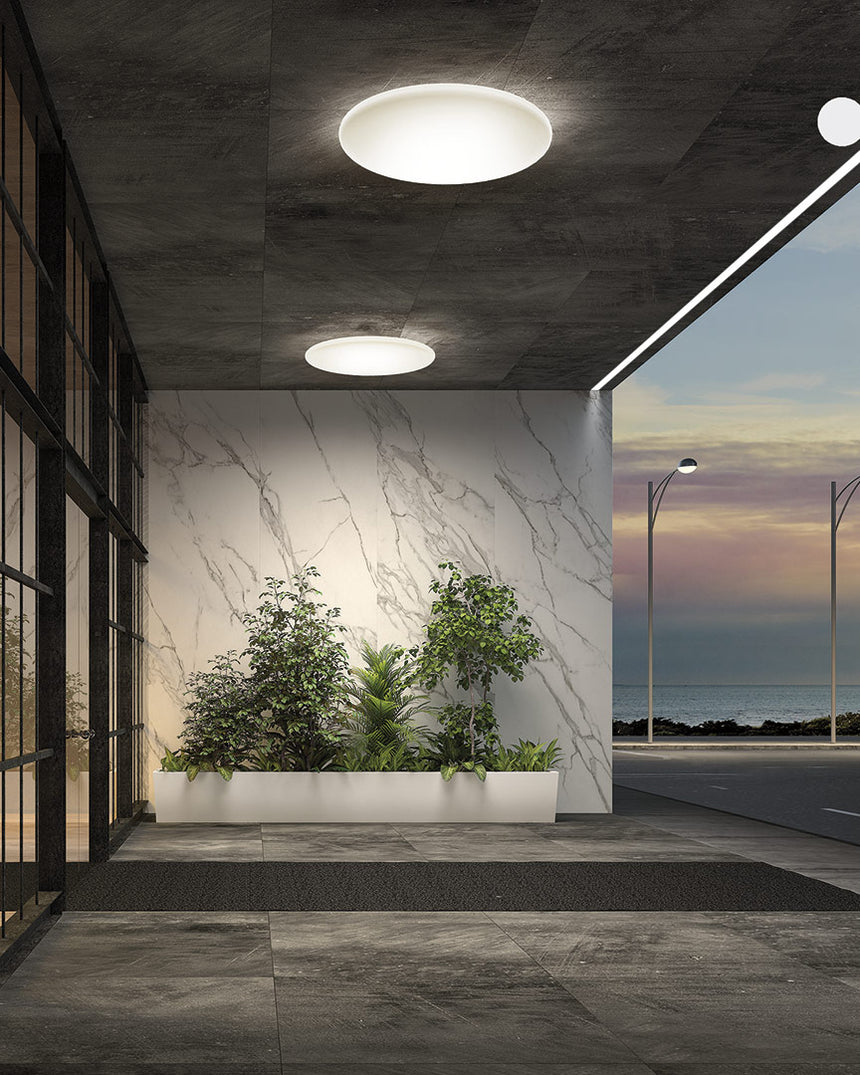

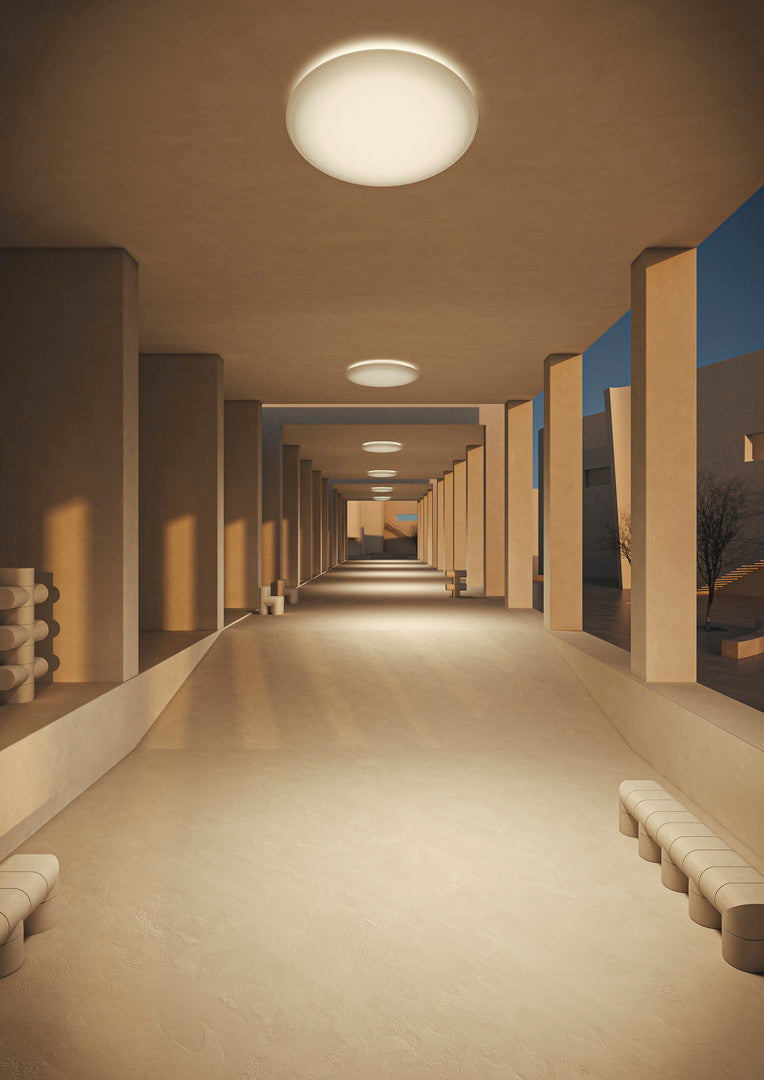

The Mega flush mount by LedsC4 is a professional lighting solution designed for outdoor spaces that require maximum resistance and luminous efficiency. With its 120 cm diameter and state-of-the-art LED technology, this flush mount provides powerful and uniform lighting with 8,303 actual lumens, ideal for porches, covered terraces, garages, or common areas of buildings.

Main advantages

• Maximum protection: IP65 and IK10 certification, resistant to dust, water, and impacts, perfect for outdoor use
• High energy efficiency: 102 lm/W with 74W LED technology, equivalent to much higher power traditional luminaires
• Versatile installation: Includes 2 cable outlets to facilitate daisy-chain installations
• DALI dimming: Digital control system to adjust light intensity according to needs
• Long service life: 50,000 hours (L80B20)
• Visual comfort: UGR 10.9 (low glare) and flickering below 5%

Technical specifications

Dimensions and construction:

• Diameter: 1,200 mm
• Height: 185 mm
• Weight: 16 kg
• Structure: Aluminum with opal white finish
• Diffuser: UV-protected opal white plastic

Lighting performance:

• Luminous flux: 8,303 actual lumens
• Efficacy: 102 lm/W
• Power: 74W LED (81.4W total with equipment)
• Color temperature: Switchable 3000K-4000K (warm/neutral white)
• Color Rendering Index (CRI): 80
• MacAdam steps: 3 (excellent color consistency)
• UGR: 10.9 (optimal visual comfort)
• Photobiological risk: RG0 (no risk)

Protection and safety:

• Protection rating: IP65 (dust-tight and protected against water jets)
• Impact resistance: IK10 (maximum mechanical protection)
• Electrical class: Class I

Power and control:

• Driver included: MEAN WELL
• Dimming: DALI (Digital Addressable Lighting Interface)
• Voltage range: 100-305V
• Frequency: 50-60Hz
• Power factor: 0.95
• Flickering: <5%

Service life:

• LED service life: 50,000 hours (L80B20)

This LedsC4 flush mount is the perfect choice for projects that demand high-quality, energy-efficient outdoor lighting with minimal maintenance. Its robust construction and IP65/IK10 certifications guarantee reliable operation under the most demanding conditions.
