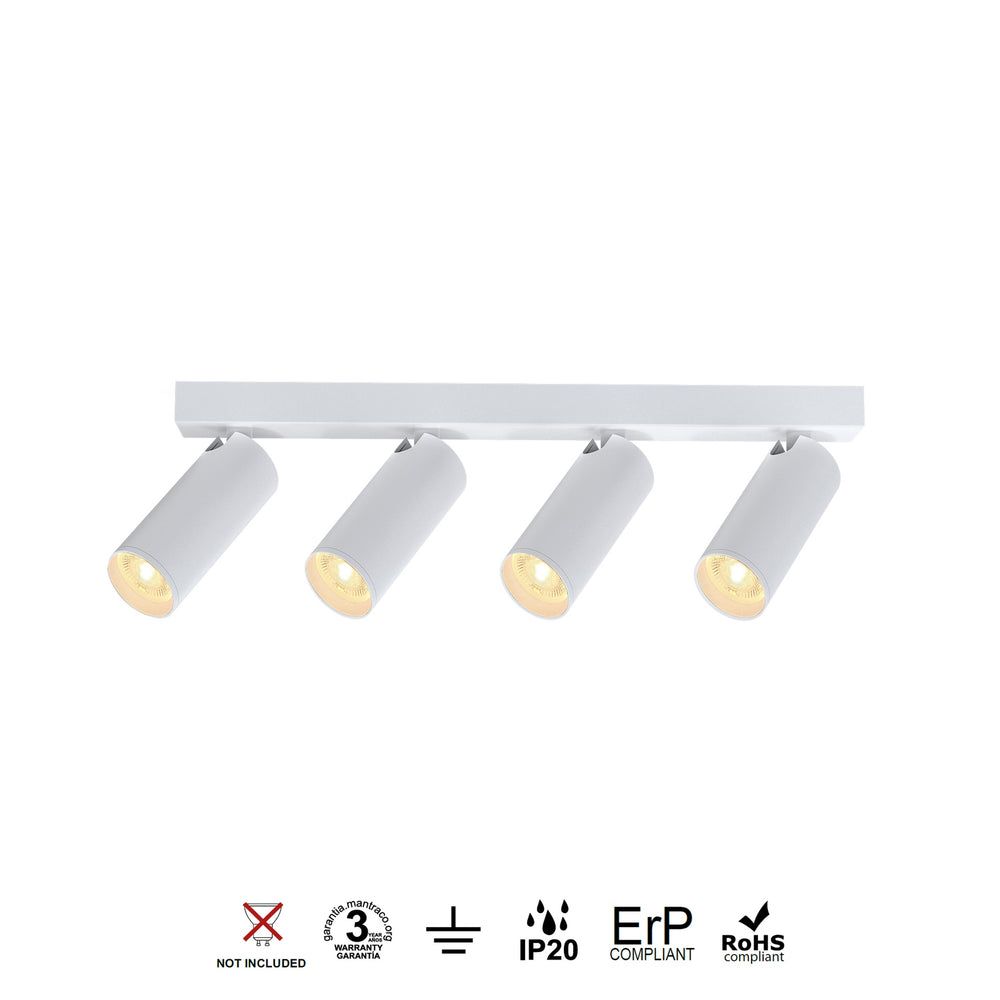

Mantra Nazaré Mini GU10 4-light surface-mounted wall and ceiling spotlight bar

Mantra Nazaré 4-light spotlight bar, with adjustable heads to direct light towards paintings, shelves, or transition areas. Choose white (ref. 9180) or black (ref. 9181) in the color selector.

Complete your purchase with 4 mini GU10 bulbs

Bulbs are purchased separately. This fixture uses the mini GU10 format and accepts a maximum diameter of 35 mm. A standard Ø 50 mm GU10 will not fit, even if it has the same socket.

For this collection, Mantra recommends the mini GU10 R09281 bulb · 4 W · 3000 K · Ø 34 mm, with warm light. Add 4 bulbs for each fixture. The spotlight bar and the bulbs are sold separately.

Technical specifications

• Bulbs required: 4 × mini GU10, not included.
• Maximum bulb diameter: 35 mm, according to installation instructions.
• Maximum power: 4 × 12 W LED; maximum 12 W per bulb.
• Power supply: 100–240 V · 50/60 Hz.
• Usage and protection: Indoor · IP20 · class I.
• Material: Aluminum and steel.

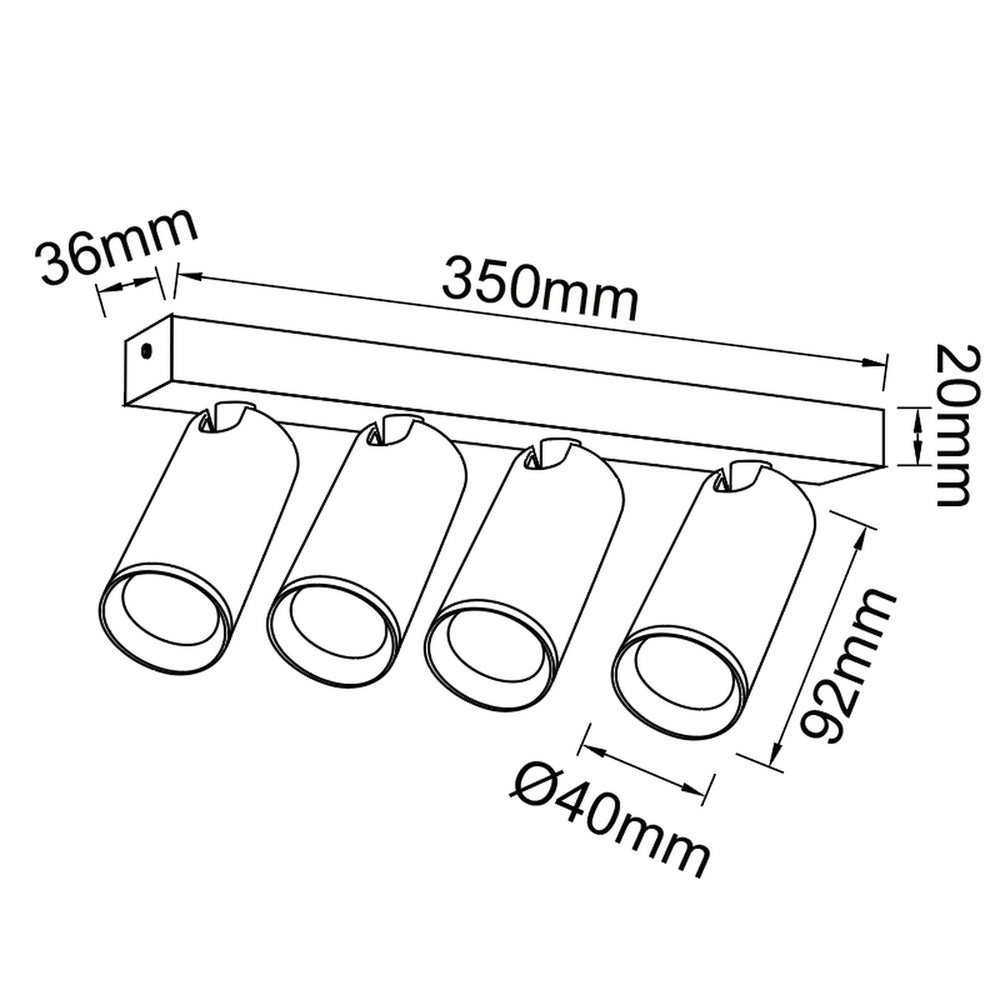

• Base dimensions: 350 × 36 × 20 mm.
• Head: Ø 40 × 92 mm.
• Warranty indicated by the manufacturer: 3 years.

Installation

Surface mounting. Consult the drawing and instructions for this version before fixing it. Due to its IP20 protection, it is intended for dry interiors. The light source is replaceable; the light color and luminous flux depend on the chosen bulb.

Choose the number of lights

• Nazaré · 1 light
• Nazaré · 2 lights
• Nazaré · 3 lights

Official datasheet · white 9180 · Official datasheet · black 9181 · Measurement drawing · Installation instructions · Bulbs recommended by Mantra

To combine several units in a home, business, or project, request a proposal for professionals.
