Mantra Magneto power supply accessory white 240W 8350

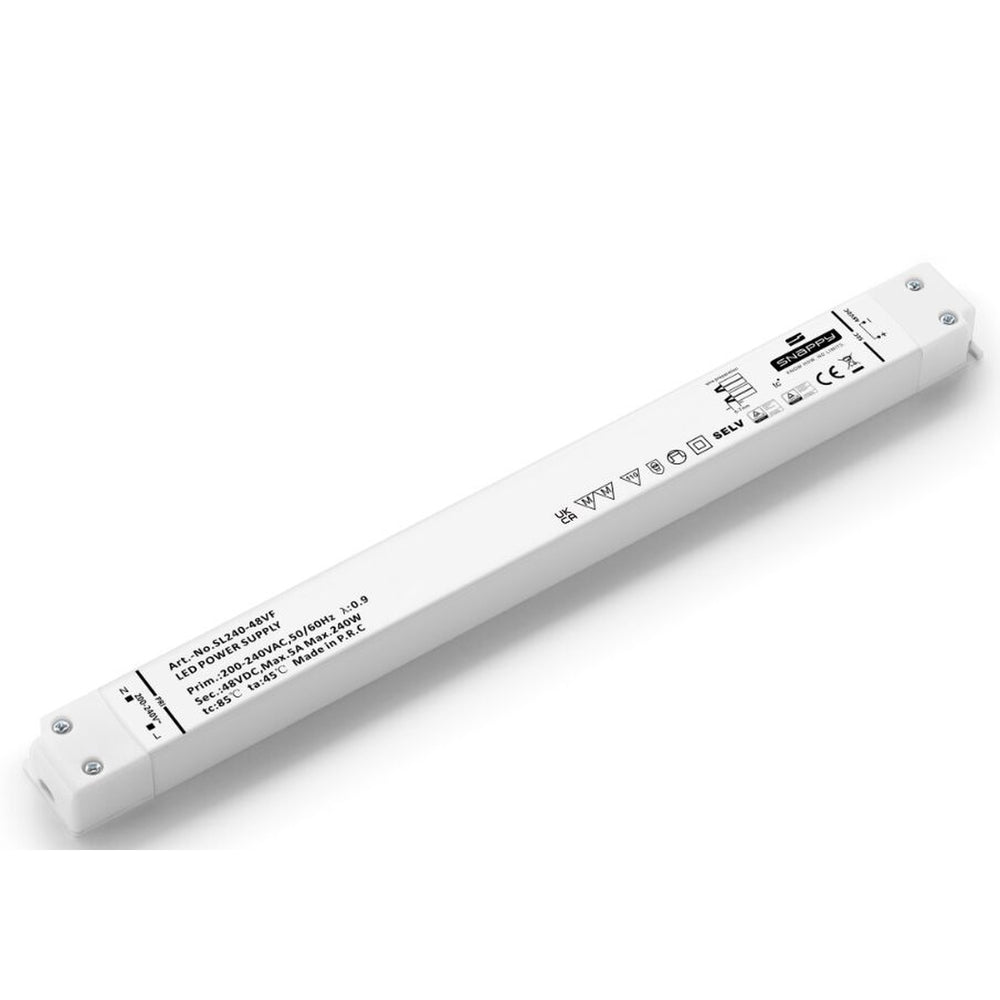

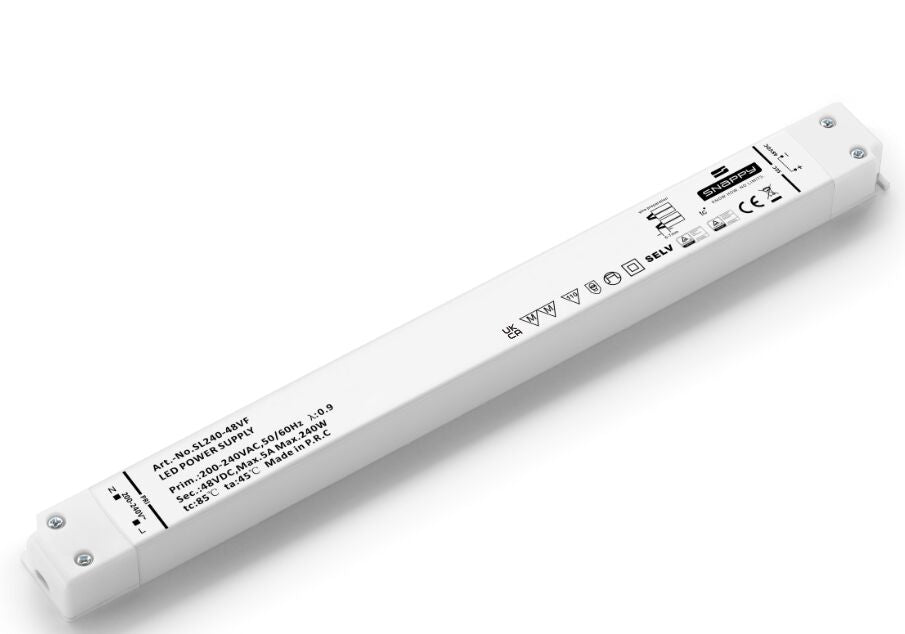

The Mantra Magneto 8350, model SL240-48VF, is an external constant voltage power supply for the Magneto 48V system. Its rated power is 240 W.

It powers the luminaires through the track's input connection. It is not a spotlight and does not emit light: it does not need a bulb and does not have its own luminous flux. The power supply is ON/OFF; it does not provide dimming on its own.

Technical specifications

• Reference: 8350
• Model: SL240-48VF
• Output: 48 V DC, constant voltage
• Rated power: 240 W
• Input: 220–240 V AC, 50/60 Hz
• Power supply control: ON/OFF, non-dimmable
• Electrical class: I
• Protection: IP20, indoor
• Material: Plastic and aluminum
• Finish: White

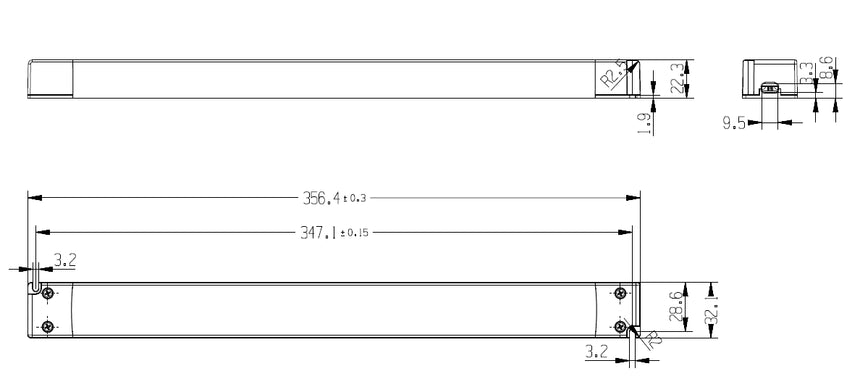

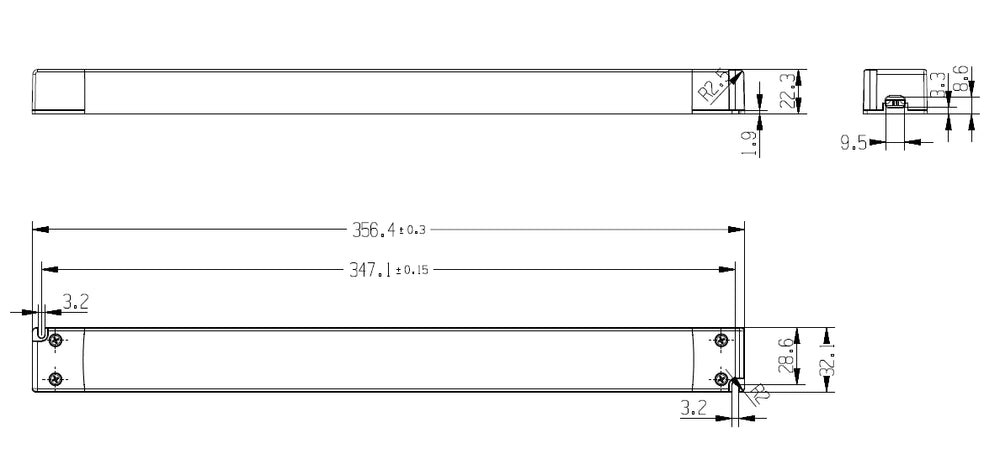

• Dimensions on web sheet: Height 2.23 cm; length 35.64 cm; depth 3.21 cm
• Net weight: 0.38 kg
• Manufacturer's warranty: 5 years, according to Mantra's conditions

How to complete the system

This power supply is installed outside the track and requires the corresponding power connection. The manual identifies the 8313 feeder for track entry. Select power, wiring, and location according to the total load and the manufacturer's diagram. To dim a set, compatible luminaires and control are required; do not connect this power supply to a dimmer assuming it regulates by itself.

Before reserving the installation space, confirm the drawing and dimensions of the supplied version.

• 2m black surface-mounted Magneto track · 8372
• Other external power supply wattage: 320 W · 8351
