Mantra Magneto white power supply accessory 320W 8351

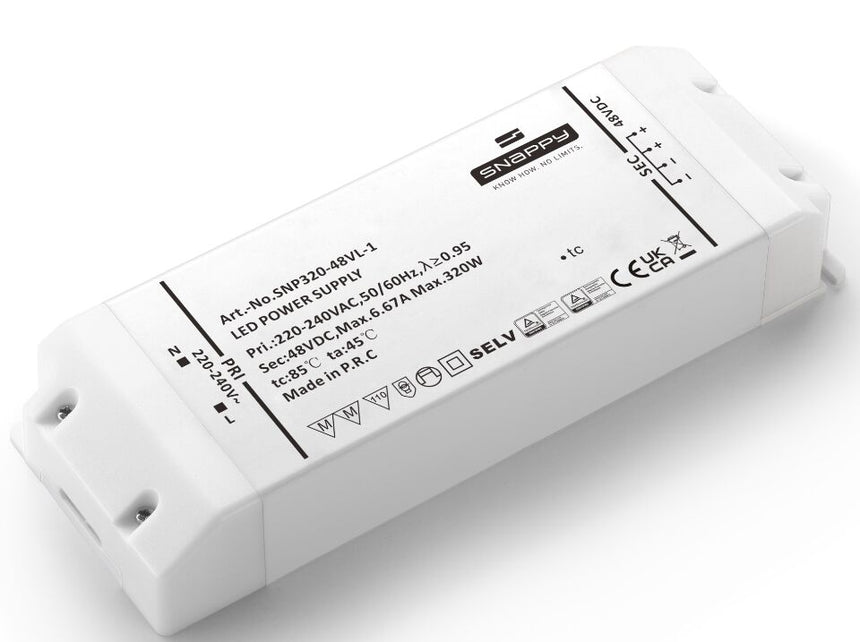

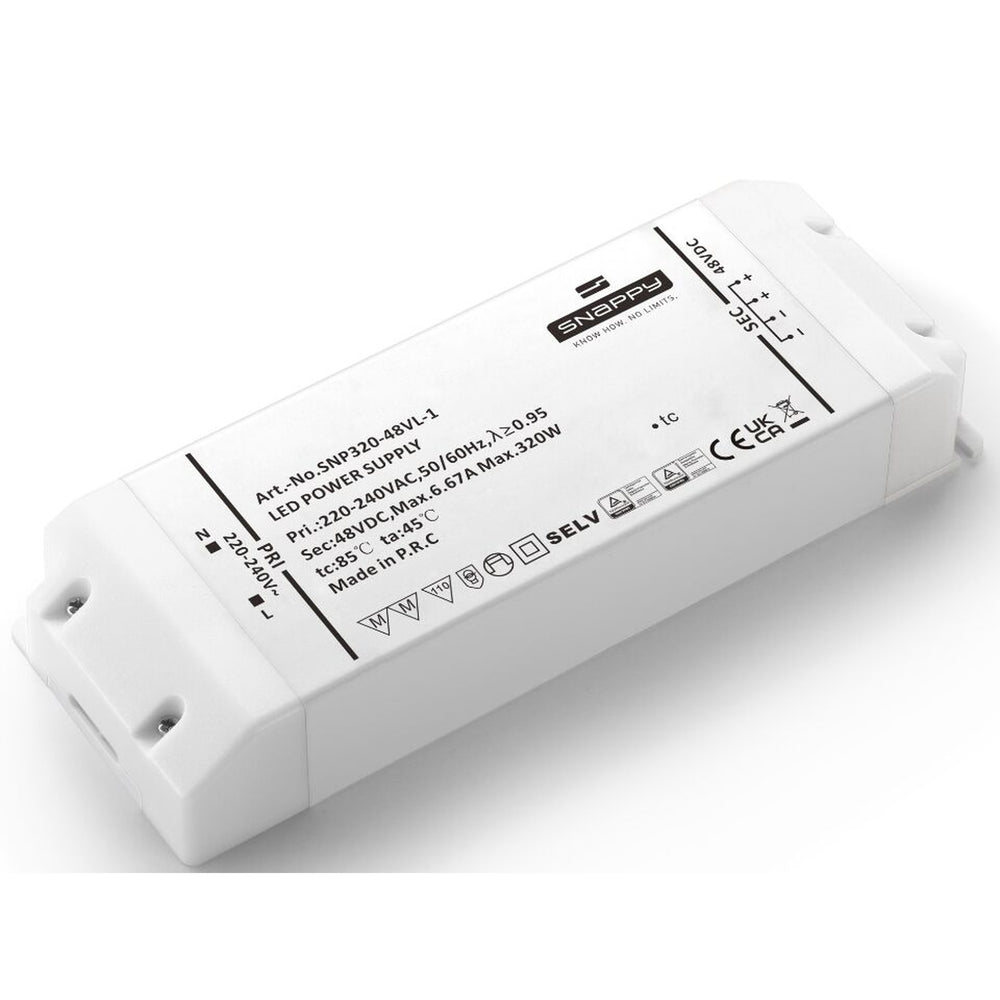

The Mantra Magneto 8351, model SNP320-48VL-1, is an external constant voltage power supply for the Magneto 48V system. Its rated power is 320 W.

It powers the luminaires through the track input connection. It is not a spotlight and does not emit light: it does not require a bulb and has no luminous flux of its own. The power supply is ON/OFF; by itself, it does not provide dimming.

Technical data sheet

• Reference: 8351
• Model: SNP320-48VL-1
• Output: 48V DC, constant voltage
• Rated power: 320 W
• Input: 220–240V AC, 50/60 Hz
• Power supply control: ON/OFF, non-dimmable
• Electrical class: I
• Protection: IP20, indoor
• Material: Plastic and aluminum
• Finish: White

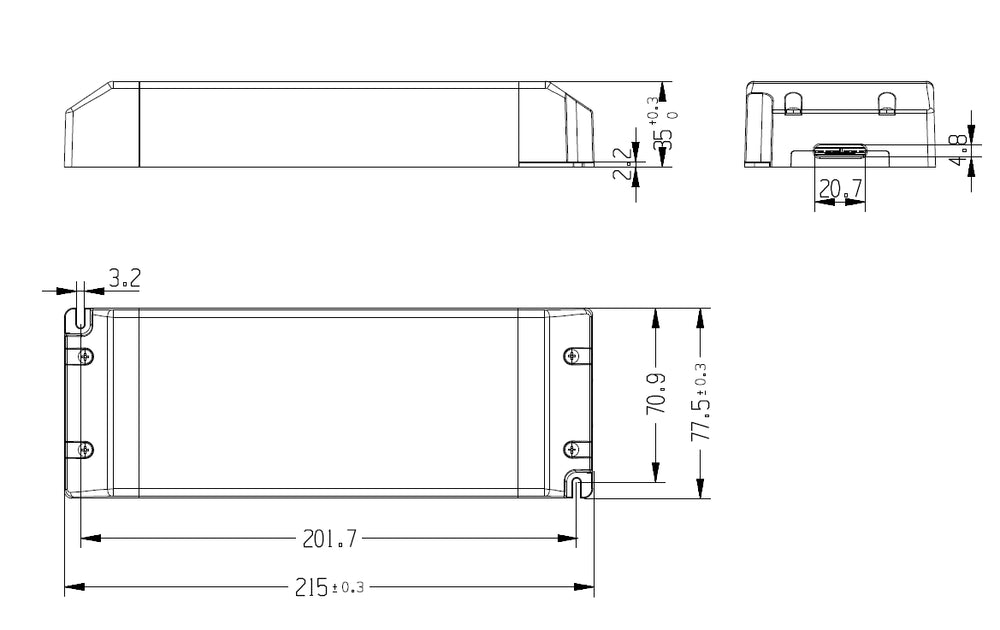

• Measurements on website sheet: Height 3.5 cm; length 21.5 cm; depth 7.75 cm
• Net weight: 0.71 kg
• Manufacturer warranty: 5 years, according to Mantra conditions

How to complete the system

This power supply is installed outside the track and requires the corresponding power connection. The manual identifies the 8313 feeder for track input. Select power, wiring, and location based on the total load and the manufacturer's diagram. To dim a set, compatible luminaires and control are required; do not connect this power supply to a dimmer assuming it regulates on its own.

Before reserving the installation space, confirm the blueprint and measurements of the supplied version.

• 2m black surface Magneto track · 8372
• Other external power supply wattage: 240 W · 8350

Documentation and support

Official datasheet for this reference · Magneto power supply manual

For your home, we can help you complete your selection. For architecture and installations, request a professional selection and quote.
