Mantra Magneto black track feeder accessory 100W 8330

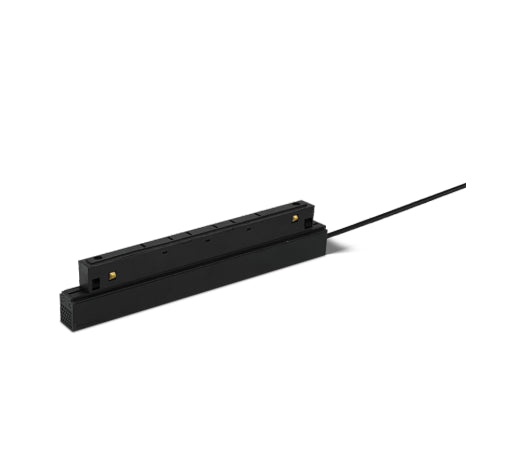

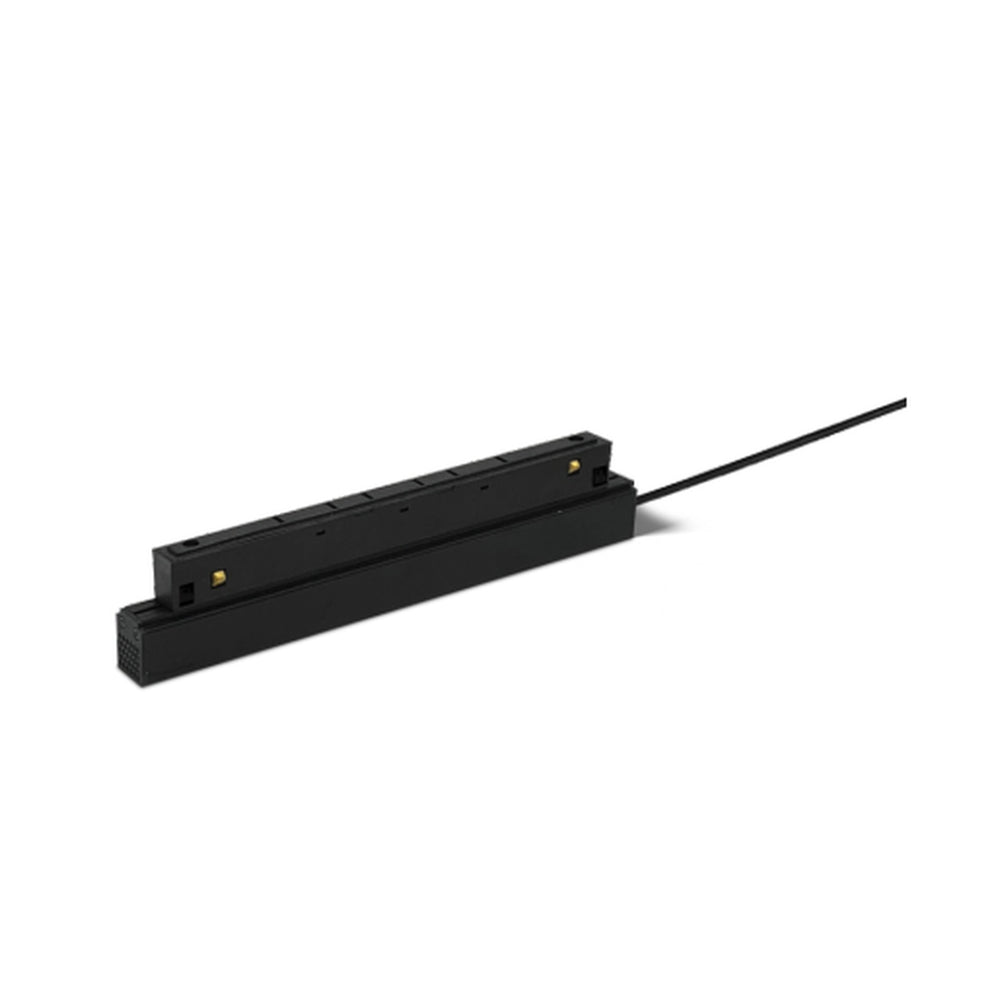

The Mantra Magneto 8330 is a power supply unit for installation in the Magneto magnetic track. It delivers a constant voltage of 48 V DC, and Mantra identifies this reference with a rated power of 100 W.

This is a power supply component, not a light fixture. It does not include light or require a bulb. It operates via on/off switching and is not dimmable.

Technical specifications

• Manufacturer reference: 8330
• Function: Power supply integrated into Magneto track
• Output: 48 V DC, constant voltage
• Declared rated power: 100 W
• Control: ON/OFF, non-dimmable
• Finish: Black
• Material indicated in current spec sheet: Plastic
• Protection: IP20, indoor
• Manufacturer warranty: 5 years, according to Mantra conditions

Dimensions and version

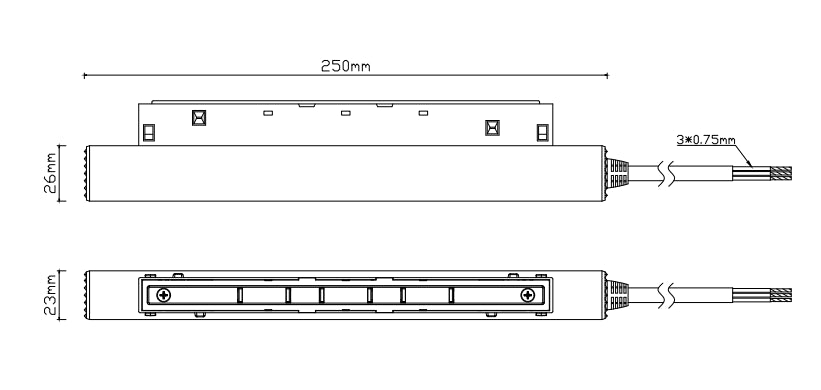

The current Mantra web spec sheet indicates 25.5 × 4.7 × 2.2 cm. The manual drawing shows 25 × 2.5 × 2.2 cm. Confirm the version and measurements of the supplied unit before reserving space on the track.

Complete your installation

Select the power supply according to the total wattage of the luminaires, the layout, and the manufacturer's mounting conditions. Before closing the assembly, verify the unit's electrical label and the corresponding diagram. Do not extrapolate compatibility to other systems just because they share 48 V.

• 2 m black surface-mounted Magneto track · 8372
• Electrical connector between sections · 8314
• 200 W power supply from the same range · 8331

Documentation and support

Official spec sheet for this reference · Manual and wiring diagram

For your home, we can help you complete the system. For architecture and installations, request professional selection and a quote.
