Mantra Magneto black track power supply accessory 200W 8331

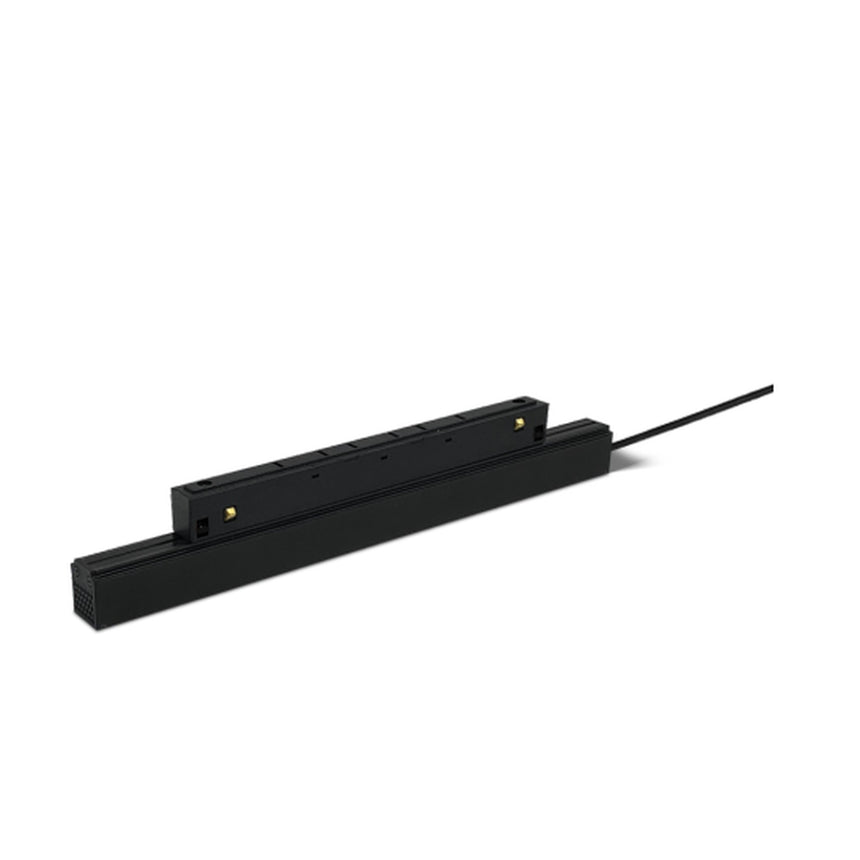

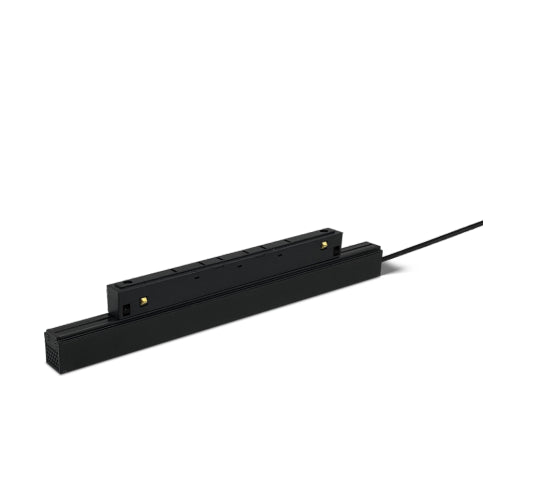

The Mantra Magneto 8331 is a power supply unit designed for installation on the Magneto magnetic track. It delivers a constant voltage of 48 V DC, and Mantra specifies this reference with a nominal power rating of 200 W.

This is a power supply component, not a luminaire. It does not incorporate light nor does it require a light bulb. It operates with an ON/OFF function and is not dimmable.

Technical specifications

• Manufacturer reference: 8331
• Function: Power supply integrated into Magneto track
• Output: 48 V DC, constant voltage
• Declared nominal power: 200 W
• Control: ON/OFF, non-dimmable
• Finish: Black
• Material indicated in the current spec sheet: Plastic
• Protection: IP20, indoor use
• Manufacturer warranty: 5 years, subject to Mantra's terms

Dimensions and version

The current Mantra website spec sheet indicates 30.5 × 4.7 × 2.2 cm. The manual drawing shows 32.5 × 2.5 × 2.2 cm. Please confirm the version and measurements of the supplied unit before reserving space on the track.

Complete your installation

Select the power supply according to the total wattage of the luminaires, the layout, and the manufacturer's mounting conditions. Before finalizing the assembly, verify the unit's electrical label and the corresponding diagram. Do not extrapolate compatibility to other systems simply because they share 48 V.

• 2 m black surface-mounted Magneto track · 8372
• Electrical connector between track sections · 8314
• 100 W power supply unit from the same series · 8330

Documentation and support

Official spec sheet for this reference · Manual and power supply diagram

For your home, we can help you complete your system. For architectural projects and installations, request professional selection and a quote.
