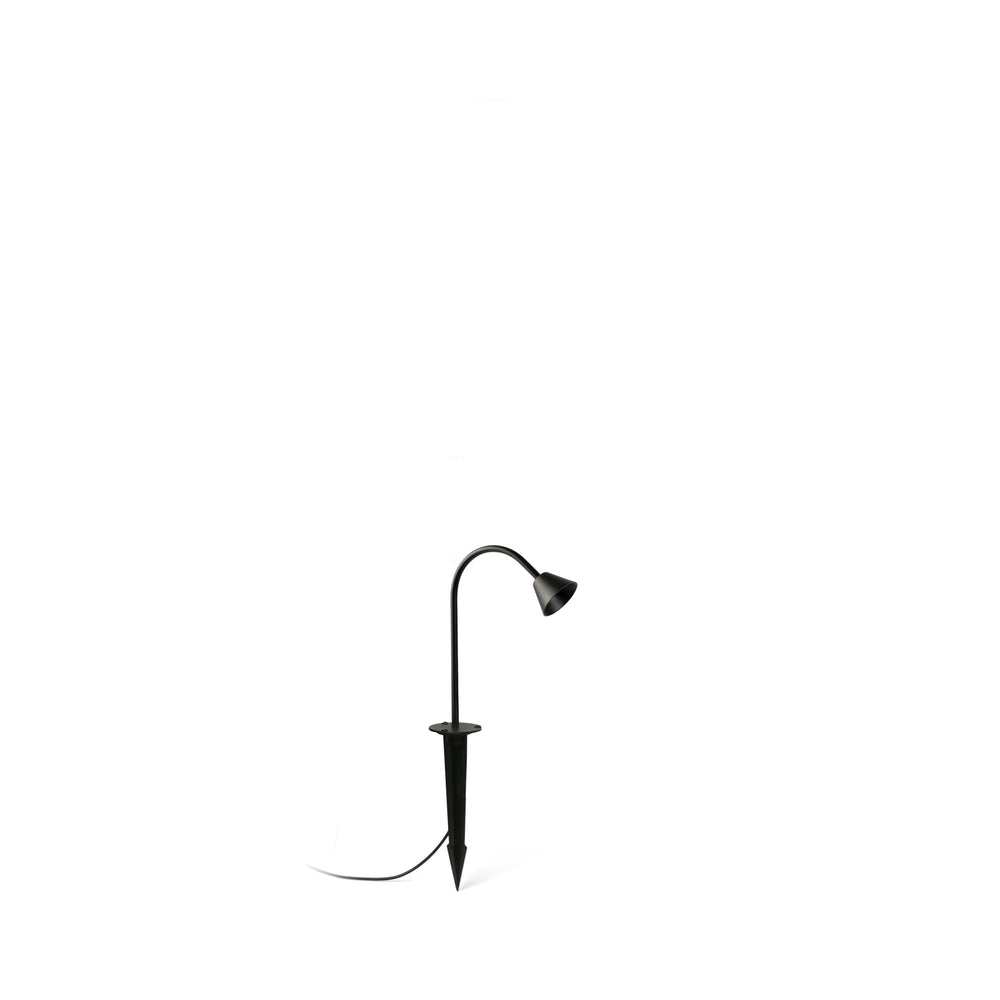

Faro Lily LED outdoor spike light, black, 24V DC, 2700K, IP65, 30cm, 75620-1

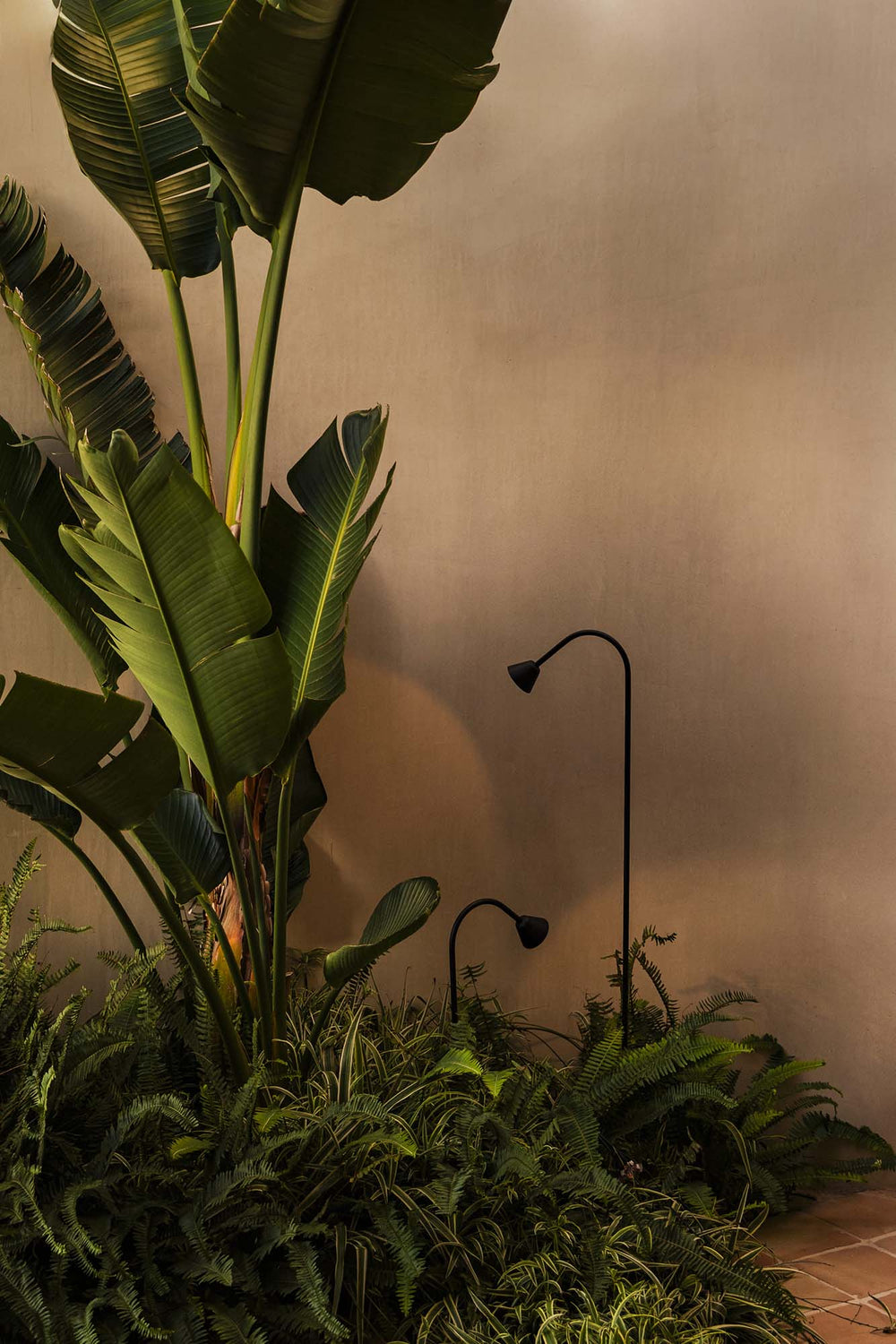

The Faro Lily 30 cm is a black spike light with integrated LED for illuminating vegetation and garden pathways. Its 2700 K warm light is directed downwards. This reference is installed using a ground spike.

To complete the installation: it operates on 24 V DC and requires an external power supply, not included. It does not connect directly to the 230 V mains.

Technical Data Sheet

• Faro reference: 75620-1

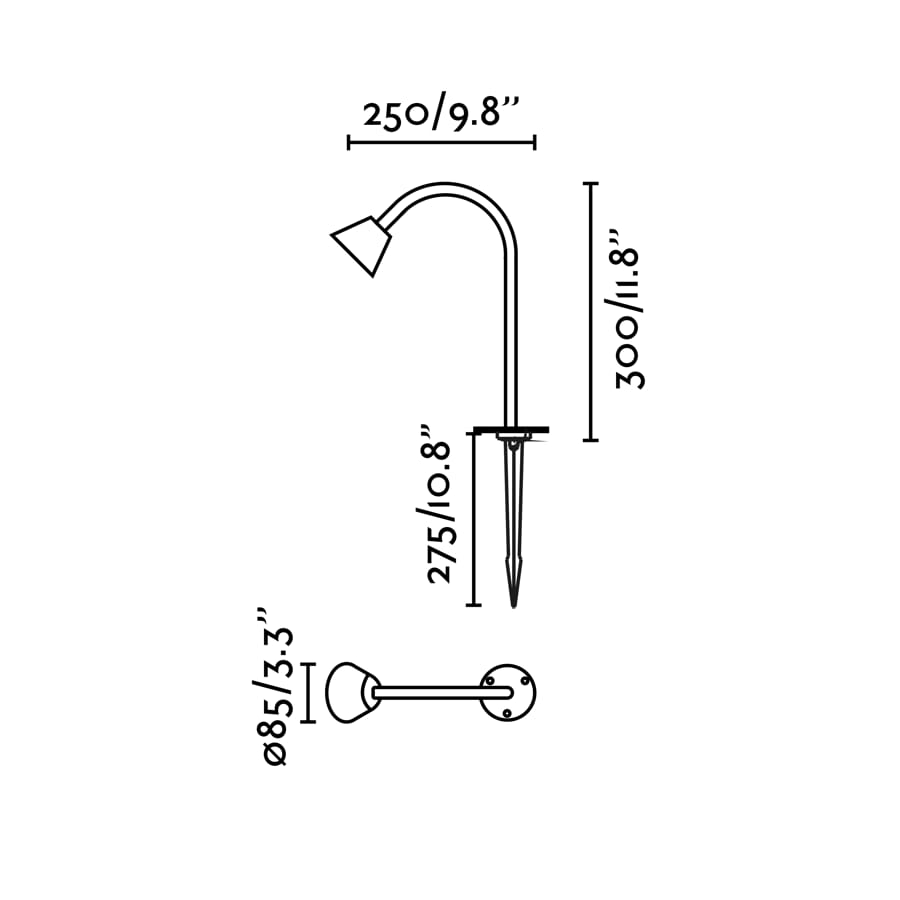

• Nominal height of the luminaire: 30 cm
• Mounting: With spike
• Light source: Integrated COB LED, included
• Power: 3 W
• Luminous flux: 154 lm
• Color temperature: 2700 K, warm light
• Color rendering: CRI >90
• Power supply: 24 V DC
• Electrical class: III
• Driver: Not included; requires external 24 V DC power supply
• Protection: IP65 · IK06
• Luminaire cable: 500 mm
• Materials: Stainless steel and glass
• Finish: Black, transparent diffuser
• Standard control: On/Off

Power supply and connections

For on/off control, Faro recommends the 98324031, 24 V DC, 30 W, IP67 power supply for a set of 1 to 10 Lily luminaires of this version. The quantity and wiring must be reviewed based on the path length and voltage drop of the installation.

The manual indicates two protection solutions: a 24 V DC IP67 power supply, or a 24 V DC power supply protected by a watertight box. The power supply and the necessary box are chosen separately. Also check the protection of the splices: the IP65 rating of the luminaire does not protect the connections on its own.

If you need DALI or Casambi, request a selection of equipment and protection before purchasing. The control system and capacity depend on the power supply chosen.

Location and mounting

Faro does not consider this reference suitable for maritime areas. Consult for suitability if the installation will be exposed to a coastal environment. Follow the mounting instructions in the manual and keep the assembly properly secured, with the connections protected.

Other 24 V DC versions

• Lily 30 cm · bollard with base · 24 V DC · 75620
• Lily 65 cm · bollard with base · 24 V DC · 75621
• Lily 65 cm · stake with spike · 24 V DC · 75621-1

These versions require an external power supply; choose by height and mounting type.

Documentation and support

Official Faro 75620-1 technical sheet · Lily installation instructions · Official presentation of the family and its versions

Help to complete your installation · Selection and quote for professionals
