Faro Lily LED outdoor spike light black 24V DC 2700K IP65 65cm 75621-1

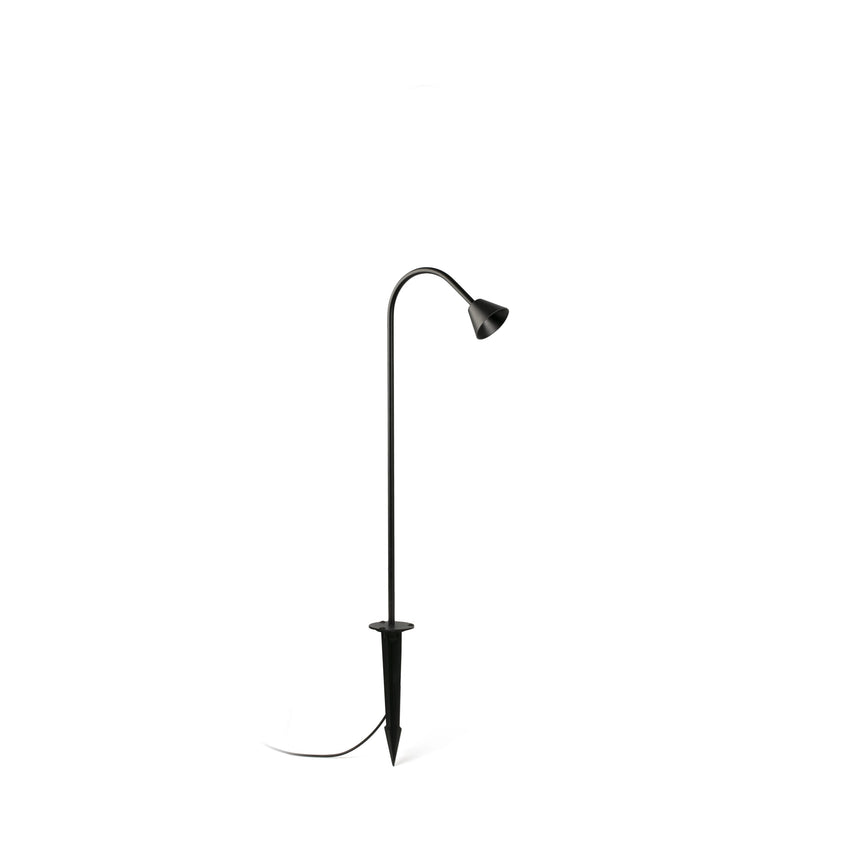

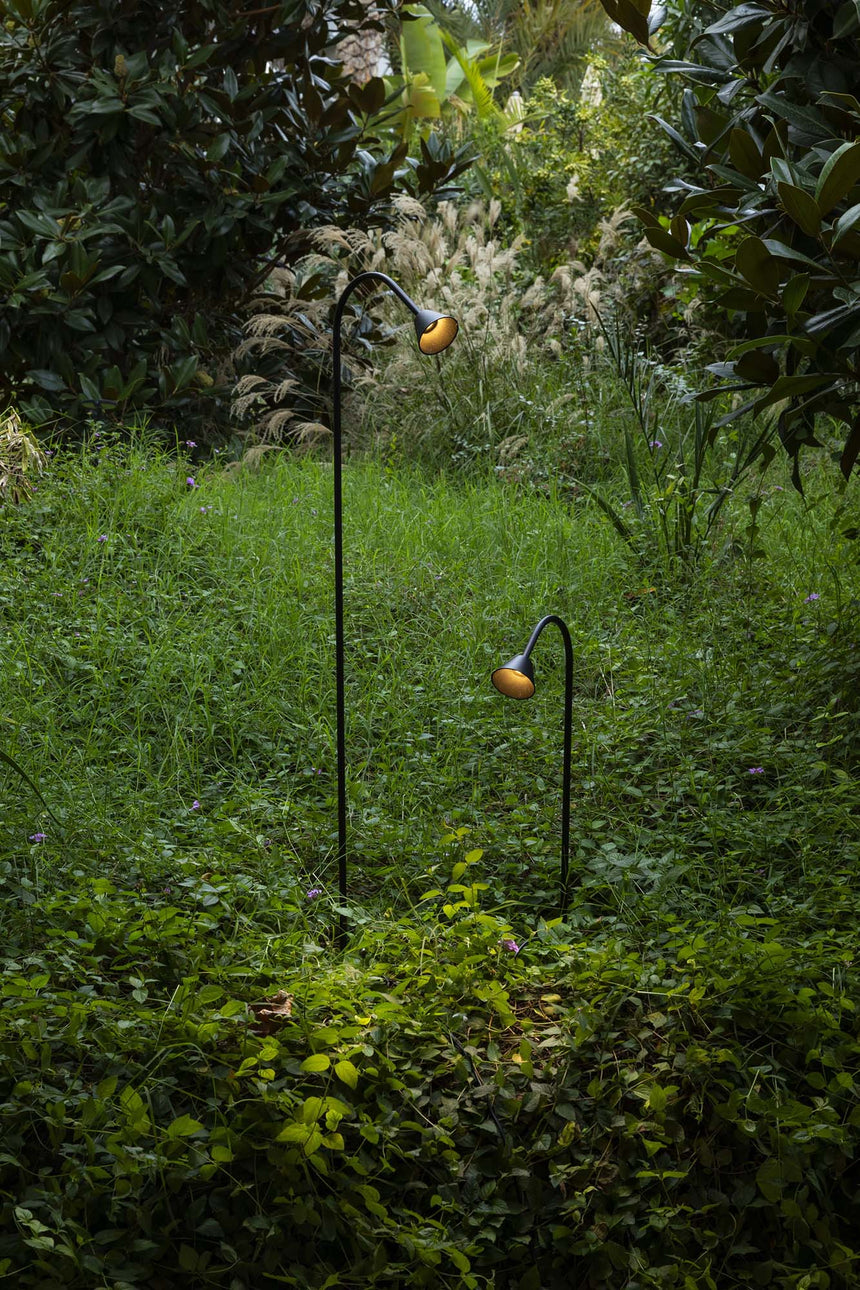

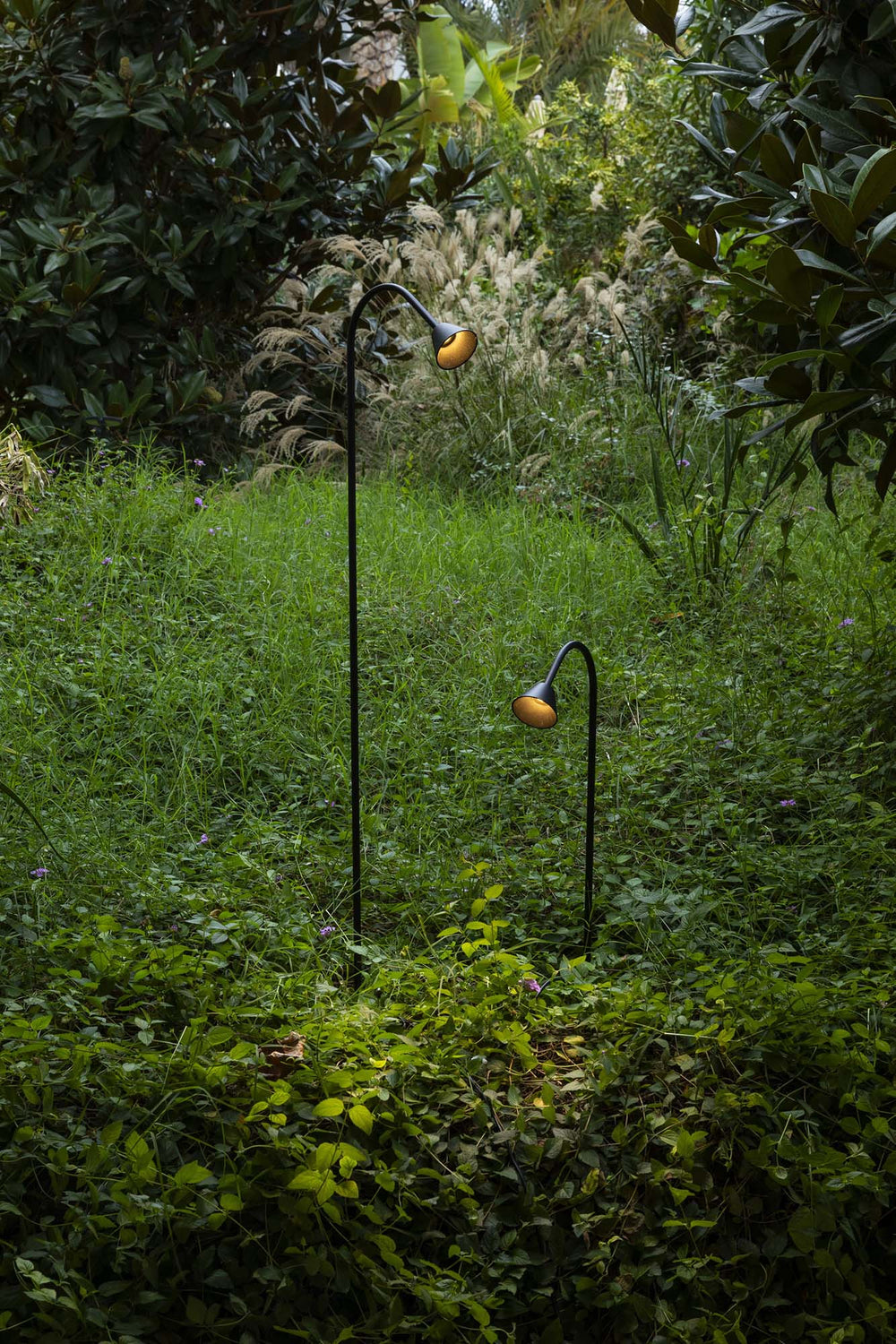

The Faro Lily 65 cm is a black stake light with integrated LED for illuminating vegetation and garden paths. Its warm 2700 K light is directed downwards. This model is installed in the ground using a spike.

To complete the installation: it operates on 24 V direct current and requires an external power supply, not included. It does not connect directly to the 230 V mains.

Technical Data Sheet

• Faro Reference: 75621-1

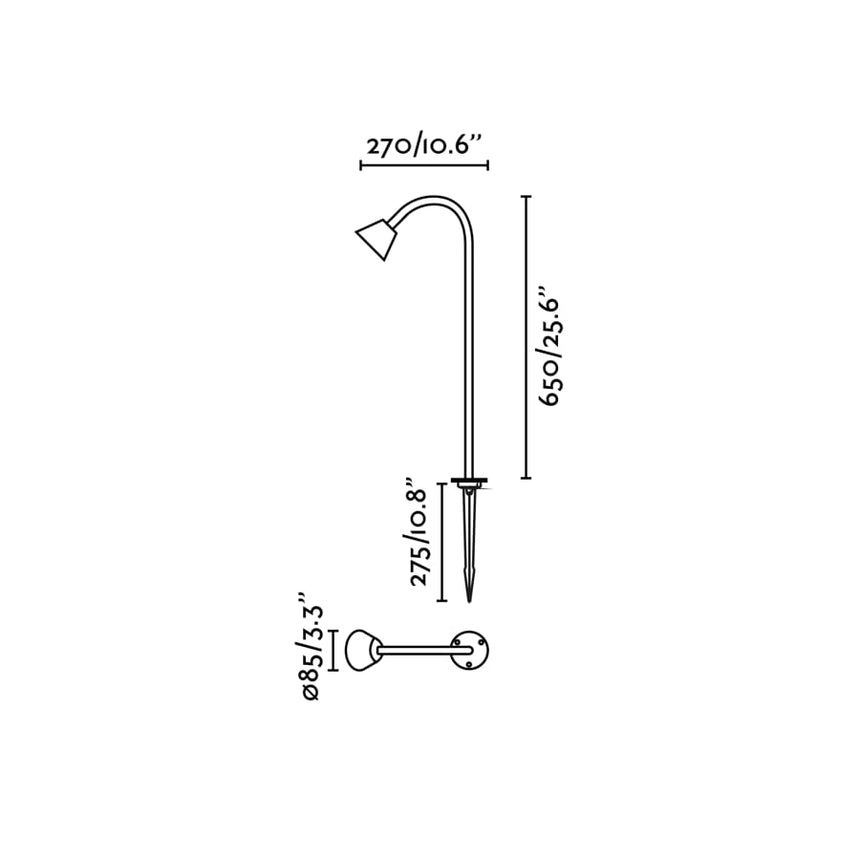

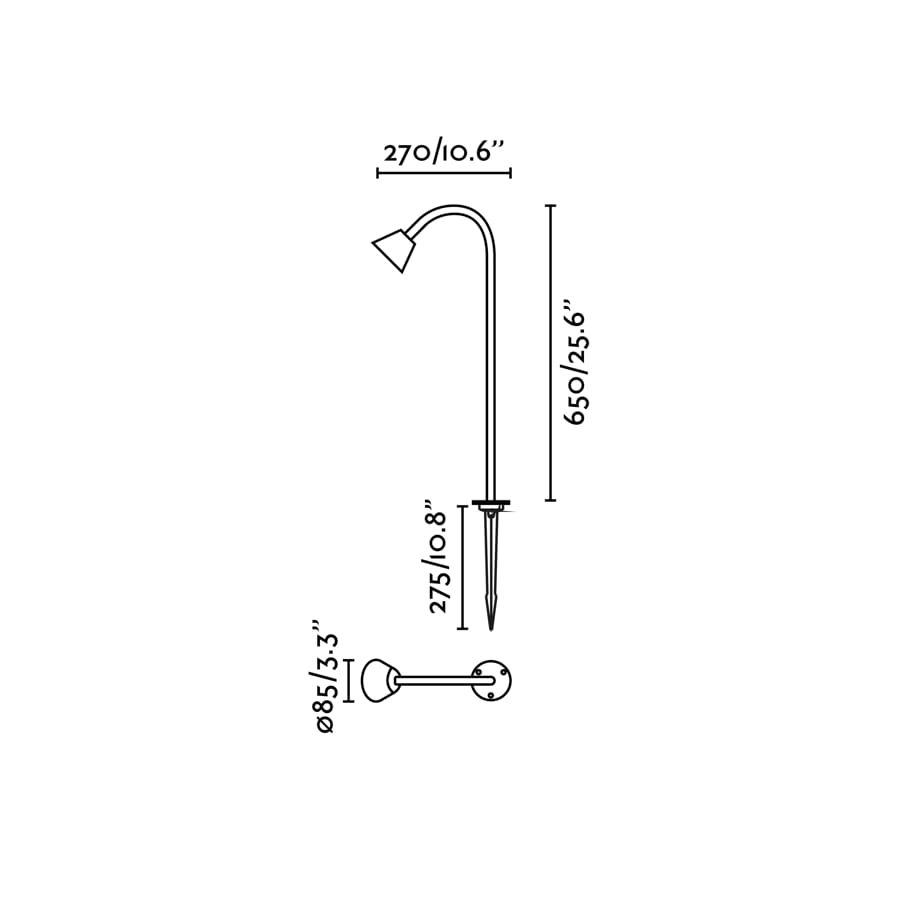

• Nominal luminaire height: 65 cm
• Mounting: With spike
• Light source: Integrated COB LED, included
• Power: 3 W
• Luminous flux: 154 lm
• Color temperature: 2700 K, warm light
• Color rendering: CRI >90
• Power supply: 24 V DC
• Electrical class: III
• Driver: Not included; requires an external 24 V DC power supply
• Protection: IP65 · IK06
• Luminaire cable: 500 mm
• Materials: Stainless steel and glass
• Finish: Black, transparent diffuser
• Standard control: On/Off

Power supply and connections

For switching on and off, Faro recommends the 98324031, 24 V DC, 30 W, IP67 power supply for a set of 1 to 10 Lily luminaires of this version. The quantity and wiring must be reviewed according to the path length and voltage drop of the installation.

The manual indicates two protection solutions: a 24 V DC IP67 power supply, or a 24 V DC power supply protected by a watertight box. The power supply and the necessary box are chosen separately. Also check the protection of the joints: the luminaire's IP65 rating does not protect the connections on its own.

If you require DALI or Casambi, request a selection of the equipment and its protection before purchasing. The control system and capacity depend on the chosen power supply.

Location and installation

Faro does not consider this reference suitable for maritime areas. Consult its suitability if the installation will be exposed to a coastal environment. Follow the assembly instructions in the manual and keep the set properly secured, with the connections protected.

Other 24 V DC versions

• Lily 30 cm · bollard with base · 24 V DC · 75620
• Lily 30 cm · stake with spike · 24 V DC · 75620-1
• Lily 65 cm · bollard with base · 24 V DC · 75621

These versions require an external power supply; choose by height and type of mounting.

Documentation and support

Official Faro 75621-1 Data Sheet · Lily installation instructions · Official presentation of the family and its versions

Help to complete your installation · Selection and quote for professionals
