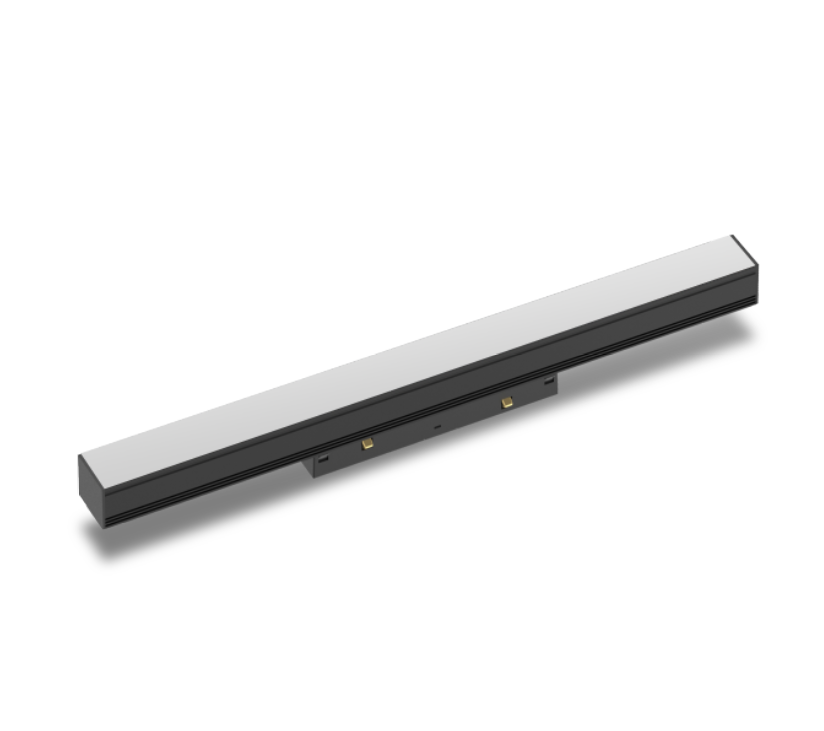

Mantra Magneto LED magnetic track light strip, black, 16W 3000K, 8319

Linear module with diffuser Mantra Magneto 8319 for 48 V magnetic track. 16 W integrated LED, 3000 K warm light, and black finish.

This item is ON/OFF, non-dimmable. It requires a track and power supply compatible with Mantra Magneto 48 V, sold separately. It does not connect directly to 230 V.

Technical specifications

• Manufacturer reference: 8319
• System: Mantra Magneto 48 V
• Finish: Black
• LED power: 16 W
• Luminaire flux: 1280 lm
• Color temperature: 3000 K, fixed
• Color rendering: CRI 90
• Beam angle: 120°
• Power supply: 48 V DC
• Control: On/Off, non-dimmable
• Protection: IP20, indoor
• Electrical class: III
• Material: Aluminum and plastic
• Manufacturer warranty: 5 years, according to Mantra conditions
• Confirmed measurements: Length: 60 cm; profile width: 2.3 cm.

To check mounting clearance, note that the website specification indicates a height of 4.27 cm while the catalog drawing shows 4.7 cm. Confirm the version supplied before finalizing the design.

Complete your system

2 m black surface Magneto track · 8372

The set requires track, power supply, and the connections for your configuration. The 48 V voltage alone does not guarantee compatibility with other track systems.

To connect sections, consult the 8314 connection module and the manufacturer's diagram. If you require dimming, select a dimmable luminaire and the power/control unit specified for it.

Other options in this family

• 5 W black spotlight · 50° beam · 8315
• 7 W black spotlight · 38° beam · 8316
• 7 W black and gold spotlight · 38° beam · 8382
• 7 W black spotlight · 12 cm height · 9068

Track-integrated power supply

100 W power supply · 8330 · 200 W power supply · 8331

These power supplies are ON/OFF. Choose the power and mounting according to the luminaire set and confirm the version supplied; the linked spec sheets detail the measurement differences published by the manufacturer.

Documentation and support

Official technical catalog · Magneto system manual

For your home, we can help you complete your selection. For architecture, retail, and installations, request professional selection and a quote.
