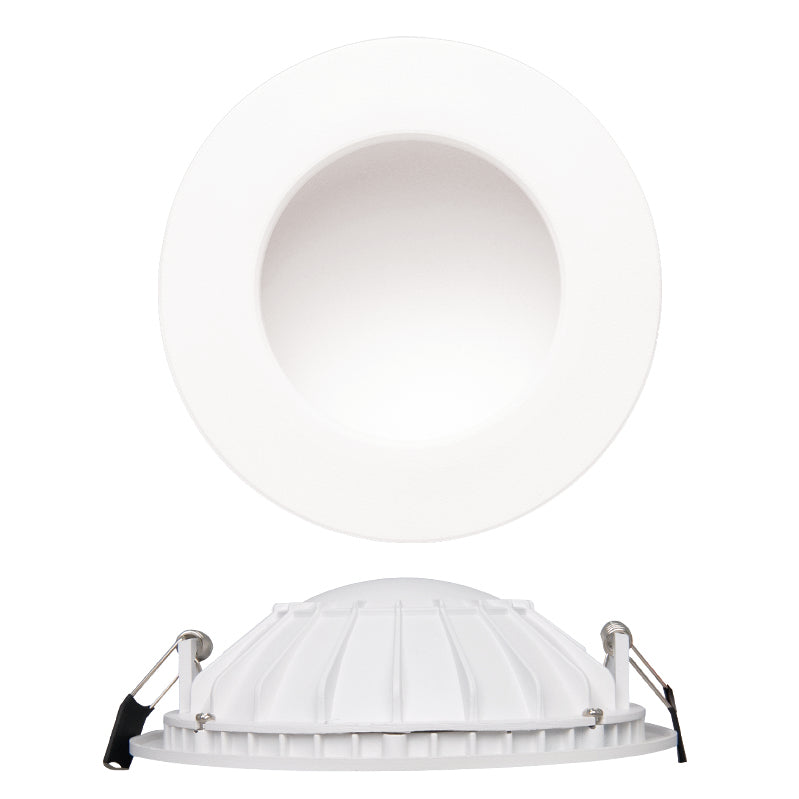

Mantra Cabrera LED recessed downlight matte white 3000K IP20 7W C0041

Mantra Cabrera C0041 is a round recessed downlight in matte white aluminum, with an integrated 7 W LED. It offers 540 lm and warm 3000 K light for general indoor lighting.

LED source included: no need to purchase a separate bulb. This reference has a fixed color temperature and is non-dimmable.

Technical specifications

• Reference: C0041
• Light source: 7 W integrated LED included
• Luminous flux: 540 lm
• Light color: 3000 K, warm light
• Color rendering: CRI ≥ 80
• Ceiling cutout: Ø 95 mm
• Body: Matte white aluminum
• Protection: IP20 and class II; for dry indoor use
• Power supply: 220-240 V · 50/60 Hz
• Dimmability: Non-dimmable

Dimensions and installation

The blueprint indicates Ø 103 mm and 31 mm height; the website specification sheet indicates Ø 105 mm and 35 mm. The catalog indicates Ø 105 mm and 31 mm. Since the documents differ, please confirm the unit's dimensions with us before preparing a tight cutout. The ceiling cutout measurement matches in both the web spec sheet and the catalog.

Also reserve space for connections and ventilation according to the installation instructions. IP20 does not provide protection against water: avoid splashes and areas requiring higher protection.

Choose power and light color

3000 K offers warm light and 4000 K neutral light. Each size requires a different cutout; check this measurement before replacing a downlight.

• Cabrera 7 W · 4000 K · cutout Ø 95 mm · C0042
• Cabrera 12 W · 3000 K · cutout Ø 135 mm · C0047
• Cabrera 12 W · 4000 K · cutout Ø 135 mm · C0048
• Cabrera 24 W · 3000 K · cutout Ø 200 mm · C0043
• Cabrera 24 W · 4000 K · cutout Ø 200 mm · C0044
• Cabrera 30 W · 3000 K · cutout Ø 280 mm · C0049
• Cabrera 30 W · 4000 K · cutout Ø 280 mm · C0050
