Mantra Cabrera recessed LED downlight, matte white, 4000K, IP20, 12W, C0048

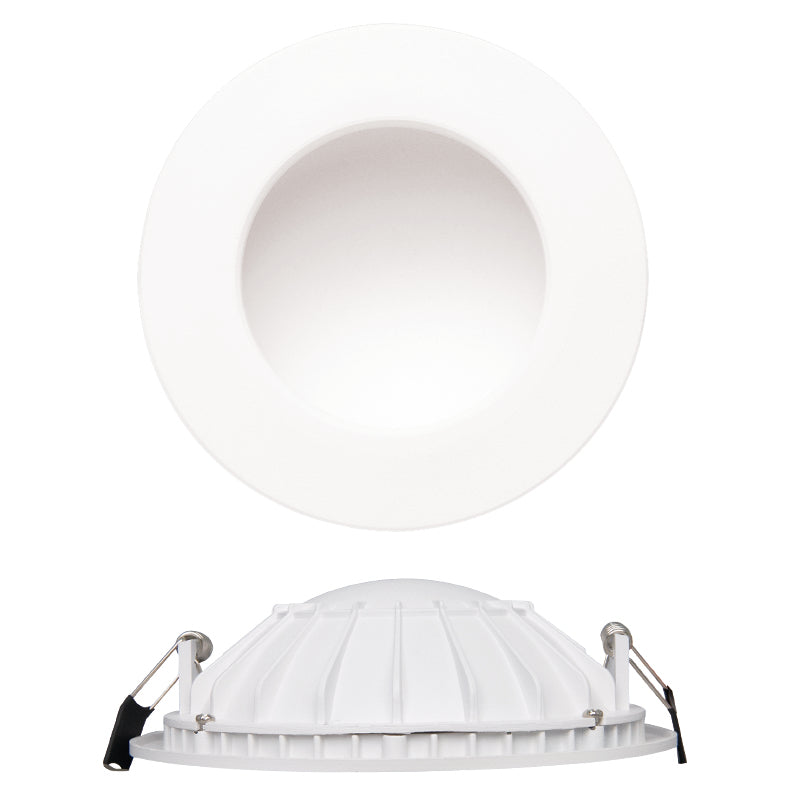

Mantra Cabrera C0048 is a round recessed downlight in matte white aluminum, with an integrated 12 W LED. It offers 1080 lm and 4000 K neutral light for general indoor lighting.

LED source included: no need to purchase a separate bulb. This reference has a fixed color temperature and does not allow for dimming.

Technical data sheet

• Reference: C0048
• Light source: Integrated 12 W LED included
• Luminous flux: 1080 lm
• Light color: 4000 K, neutral light
• Color rendering: CRI ≥ 80
• Ceiling cutout: Ø 135 mm
• Body: Matte white aluminum
• Protection: IP20 and class II; for dry interiors
• Power supply: 220-240 V · 50/60 Hz
• Dimming: Non-dimmable

Dimensions and installation

The external diameter is 150 mm. The height is 47 mm according to the technical drawing and catalog, and 50 mm according to the web datasheet. Since the documents differ, please confirm the dimensions of the unit with us before preparing a tight opening. The ceiling cutout is consistent between the web datasheet and the catalog.

Also reserve space for connections and ventilation according to the installation instructions. IP20 does not provide protection against water: avoid splashes and areas that require higher protection.

Choose power and light color

3000 K offers warm light and 4000 K neutral light. Each size requires a different cutout; check this measurement before replacing a downlight.

• Cabrera 7 W · 3000 K · cutout Ø 95 mm · C0041
• Cabrera 7 W · 4000 K · cutout Ø 95 mm · C0042
• Cabrera 12 W · 3000 K · cutout Ø 135 mm · C0047
• Cabrera 24 W · 3000 K · cutout Ø 200 mm · C0043
• Cabrera 24 W · 4000 K · cutout Ø 200 mm · C0044
• Cabrera 30 W · 3000 K · cutout Ø 280 mm · C0049
• Cabrera 30 W · 4000 K · cutout Ø 280 mm · C0050
