Mantra Cabrera recessed downlight LED matte white 4000K IP20 24W C0044

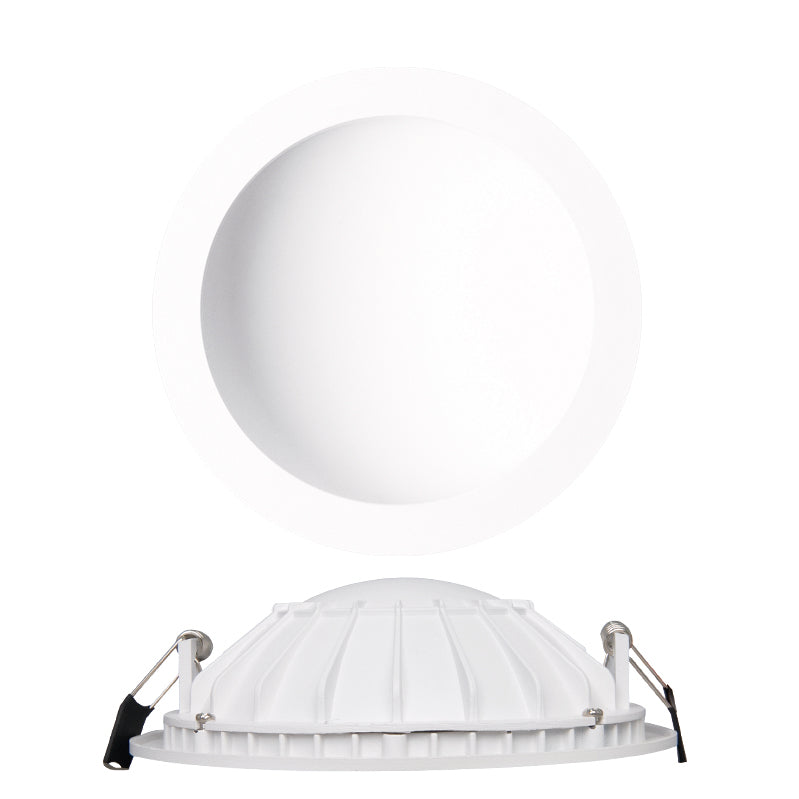

Mantra Cabrera C0044 is a round recessed downlight in matte white aluminum, with an integrated 24 W LED. It offers 2160 lm and neutral 4000 K light for general indoor lighting.

LED source included: no need to purchase a separate bulb. This reference has a fixed color temperature and does not allow for intensity dimming.

Technical sheet

• Reference: C0044
• Light source: Integrated 24 W LED included
• Luminous flux: 2160 lm
• Light color: 4000 K, neutral light
• Color rendering: CRI ≥ 80
• Ceiling cutout: Ø 200 mm
• Body: Matte white aluminum
• Protection: IP20 and class II; for dry indoor use
• Power supply: 220-240 V · 50/60 Hz
• Dimming: Non-dimmable

Dimensions and installation

The technical drawing and web sheet indicate Ø 225 mm and 60 mm in height; the catalog indicates Ø 220 mm and 61 mm. Since the documents differ, please confirm the unit measurements with us before preparing a tight opening. The ceiling cutout matches in both the web sheet and the catalog.

Also, reserve space for connections and ventilation according to the installation instructions. IP20 does not provide protection against water: avoid splashes and areas that require higher protection.

Choose power and light color

3000 K offers warm light and 4000 K offers neutral light. Each size requires a different cutout; check this measurement before replacing a downlight.

• Cabrera 7 W · 3000 K · Ø 95 mm cutout · C0041
• Cabrera 7 W · 4000 K · Ø 95 mm cutout · C0042
• Cabrera 12 W · 3000 K · Ø 135 mm cutout · C0047
• Cabrera 12 W · 4000 K · Ø 135 mm cutout · C0048
• Cabrera 24 W · 3000 K · Ø 200 mm cutout · C0043
• Cabrera 30 W · 3000 K · Ø 280 mm cutout · C0049
• Cabrera 30 W · 4000 K · Ø 280 mm cutout · C0050

Official C0044 sheet · Manufacturer drawing · Technical catalog · Quote for professionals and projects
