Mantra Cabrera recessed downlight LED matte white 4000K IP20 30W C0050

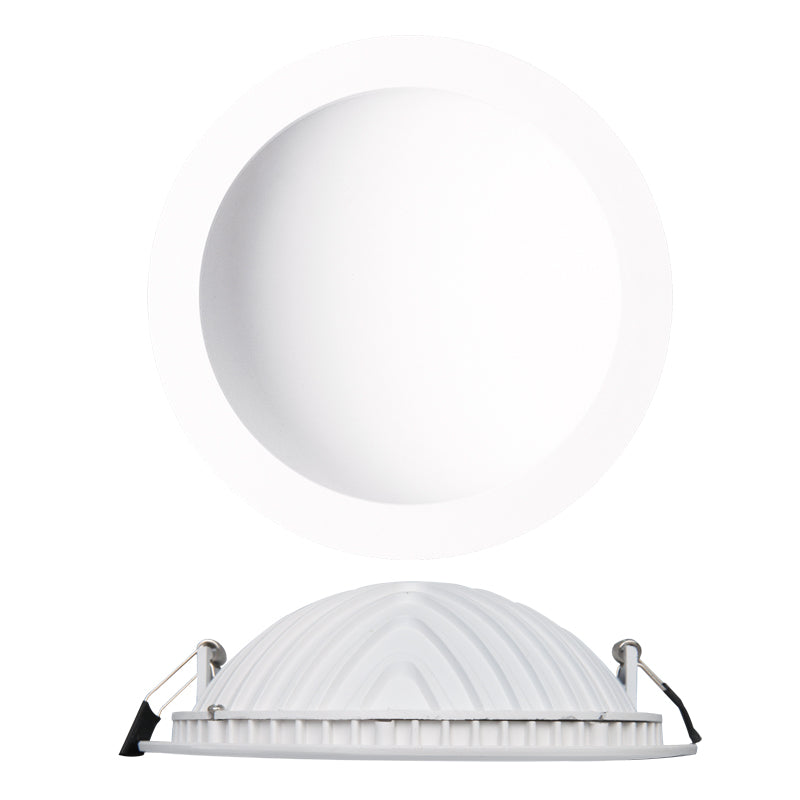

Mantra Cabrera C0050 is a round recessed downlight in matte white aluminum, with an integrated 30 W LED. It offers 2600 lm and neutral 4000 K light for general indoor lighting.

LED source included: no need to purchase a separate bulb. This reference has a fixed color temperature and does not allow for dimming.

Technical specifications

• Reference: C0050
• Light source: Integrated 30 W LED included
• Luminous flux: 2600 lm
• Light color: 4000 K, neutral light
• Color rendering: CRI ≥ 80
• Ceiling cutout: Ø 280 mm
• Body: Matte white aluminum
• Protection: IP20 and class II; for dry indoor use
• Power supply: 220-240 V · 50/60 Hz
• Dimming: Non-dimmable

Dimensions and installation

The external diameter is 300 mm. The diagram and catalog indicate a height of 85 mm; the website specification sheet indicates 63 mm. Since the documents differ, please confirm the unit's measurements with us before preparing a tight cutout. The ceiling cutout is consistent between the website specification sheet and the catalog.

Also reserve space for connections and ventilation according to the installation instructions. IP20 does not protect against water: avoid splashing and areas that require higher protection.

Choose power and light color

3000 K offers warm light and 4000 K neutral light. Each size requires a different cutout; check this measurement before replacing a downlight.

• Cabrera 7 W · 3000 K · cutout Ø 95 mm · C0041
• Cabrera 7 W · 4000 K · cutout Ø 95 mm · C0042
• Cabrera 12 W · 3000 K · cutout Ø 135 mm · C0047
• Cabrera 12 W · 4000 K · cutout Ø 135 mm · C0048
• Cabrera 24 W · 3000 K · cutout Ø 200 mm · C0043
• Cabrera 24 W · 4000 K · cutout Ø 200 mm · C0044
• Cabrera 30 W · 3000 K · cutout Ø 280 mm · C0049

Official C0050 specification sheet · Manufacturer's diagram · Technical catalog · Quote for professionals and projects
